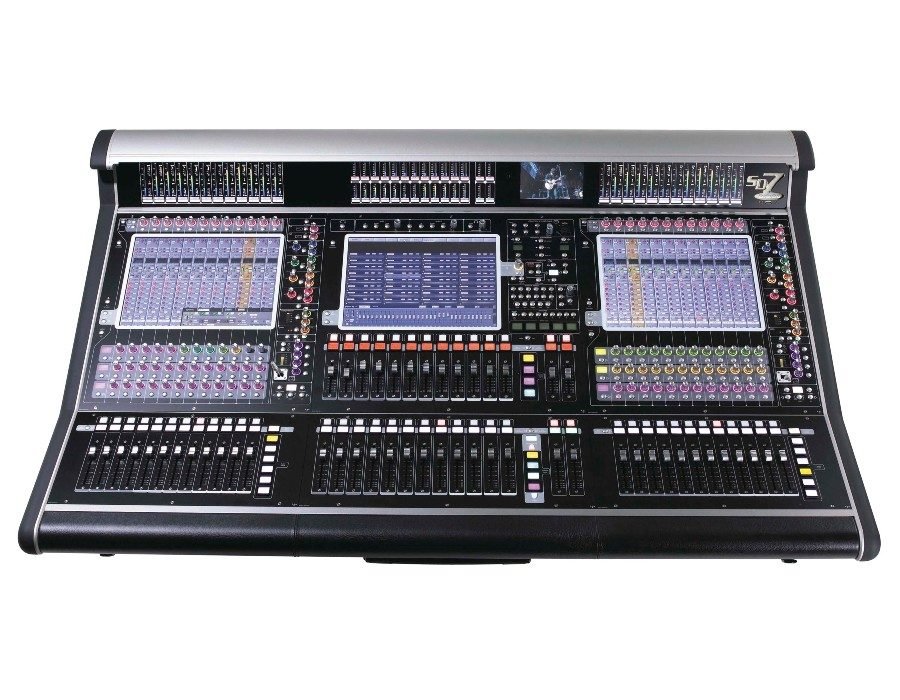

DiGiCo SD7

DiGiCo SD7

If it’s everything that you’re after, the SD7 is the console for you. Our flagship model offers mind-blowing I/O capabilities and sets new standards in high-density digital processing via our proprietary Stealth mixing and routing engine and game-changing, Super FPGA technology.To put that into perspective, it delivers eight times the power of our industry standard D5 Live.A combination of technologies have been seamlessly integrated into the SD7’s worksurface to meet the everyday needs of any touring engineer. We’ve managed to pack them into three user-friendly interactive 15-inch high-resolution touch screens, each of which accommodates a bank of 12 faders,  to provide the user with the perfect platform – everything is just ‘where it should be’.

To make navigation even easier, we’ve added high-definition interactive meter bridges and multicoloured knobs and switches; and for further functionality and flexibility, 16 assignable faders (one bank of 12, one bank of four) sit neatly below the master screen in the centre of the console, taking the SD7’s fader tally to a sizeable 52.

To increase the fader count further for multi-engineer applications and shows, an EX-007 Fader Expansion unit is available. Two EX-007s can be connected via a simple Cat5e connector for remote control or simply to increase your fader count to 100.

• 253 Input Channels
• 128 Aux / Sub-Group Busses
• LR/LCR/5.1 Master Buss
• 32 x 32 Full Processing Matrix
• 253 Dynamic Equalizers
• 48/96 kHz Sample Rate

Under The Hood

With a massive 256 processing paths at 48kHz/96kHz, the SD7 is the Einstein of digital mixing platforms.

Standard channel processing, whether inputs or outputs, includes Channel Delay, DiGiTuBe, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, Dual insert points, and DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).

Incorporated within the master section are 32 gangable 32 band graphic EQs, 48 stereo effects, and 36 control groups (VCAs). Using snapshots, engineers can switch between complete configurations in any live environment at the press of a button – during rehearsals, setup or even during a show.

In addition, the SD7’s 128 busses can be assigned as mono/stereo groups or auxiliary busses, while further configurability is available courtesy of a 32 x 32 output matrix , dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
