DiGiCo SD9

DiGiCo SD9

The SD9 is a super-flexible, complete integrated system powered by Stealth Digital Processing and floating point Super FPGA technology. This lightweight, small-footprint console was designed with multiple applications in mind therefore is equally suited to life on the road or as part of any fixed installation, be it a theatre, conference centre, house of worship or school. The SD9 provides outstanding performance at a very competitive price point.

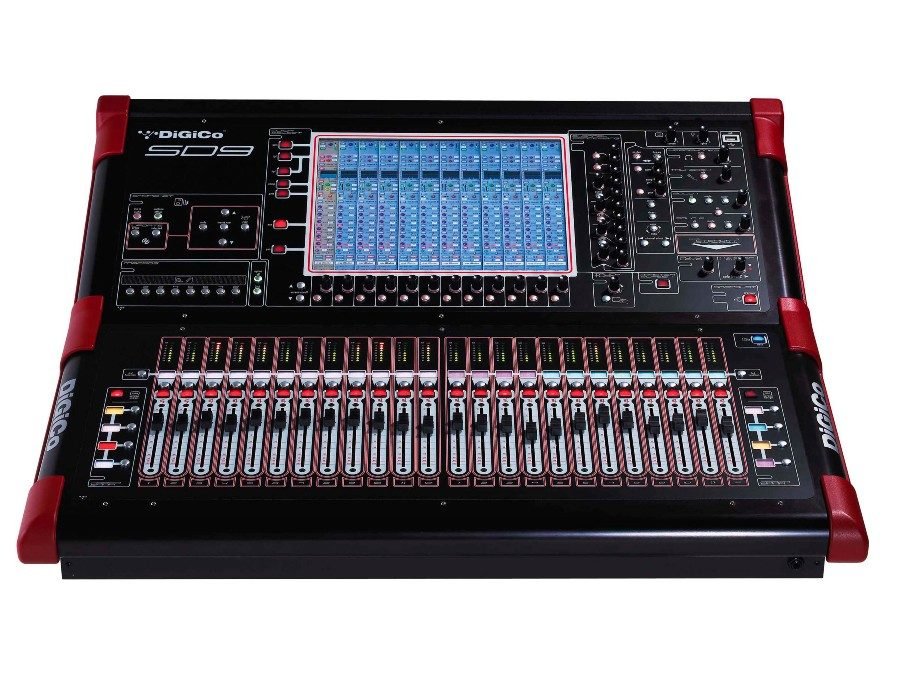

The SD9 features 24 touch-sensitive motorised faders and benefits from quick access function buttons for faster response times. At the heart of the console’s worksurface is a 15-inch, high resolution TFT LCD touch screen with backlit display.In addition, the SD9 benefits from dedicated multi-function control knobs and electronic labelling.

• 96 Input Channels
• 48 Aux / Sub-Group Busses
• LR/LCR Master Buss
• 12 x 8 Full Processing Matrix
• 155 Dynamic Equalizers
• 48/96kHz Sample Rate

Under The Hood

Boasting 96 channels at 48kHz/96kHz, the SD9 delivers a wealth of functionality. Standard channel processing (inputs and outputs) includes Channel Delay, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo’s DYN 1 (Compressor, De-esser or Multi Band Compressor) and DYN 2 (Gate, Compressor or Ducker).

Also onboard are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 gangable 32 band graphic EQs, 12 stereo effects (selectable from a palette of 33), and 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.

The SD9’s 48 busses are all assignable as groups or auxiliary busses while further configurability comes courtesy of a 12×8 output matrix, dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
