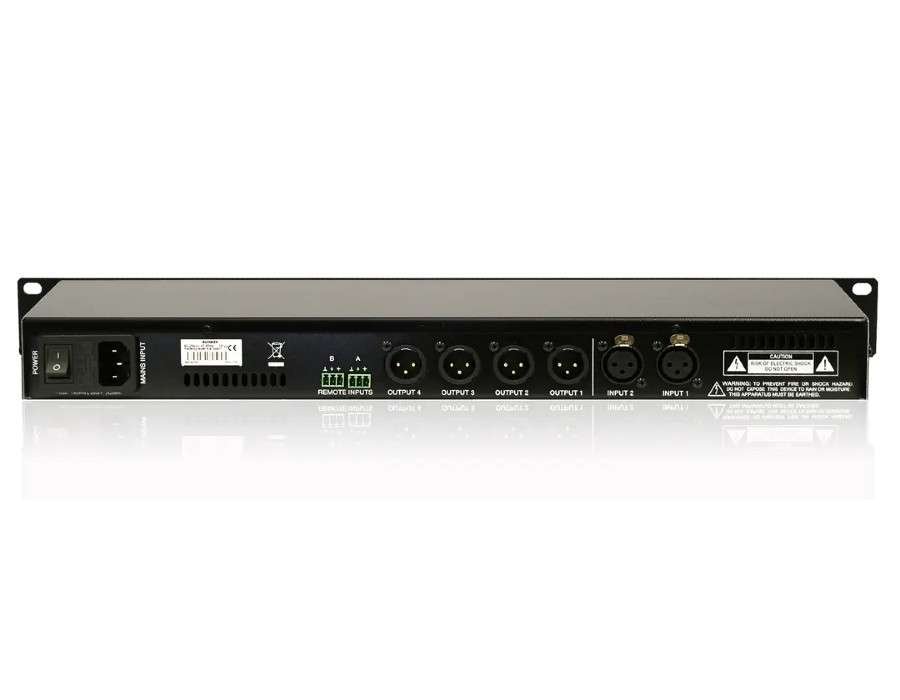

• 2 audio inputs x 4 audio outputs, all balanced
• 24 bits / 48 kHz DSP processing
• USB interface and EclerCOMM Manager compatibility
• DSP processing:- GAIN, MUTE, POLARITY, etc., per input or output – 8 parametric EQ filters per input / 8 parametric EQ filters per output – Butterworth, Linkwitz-Riley or Bessel Crossover filters at inputs and outputs (up to 48 dB / oct)- Inputs and outputs delay- Peak & RMS compressor / limiter at inputs & outputs, including make-up gain- 2 LINK groups (output channels link)
• System templates to create user configurations
• 20 user Presets
• Password protection system

APPLICATIONS

• Permanent installation management system
• Live sound. Monitor management
• Stereo bi-amped general applications
