Electro-Voice CPS 4.10

Electro-Voice CPS 4.10

• 70/100 V operation for distributed systems
• Class-D design for optimum efficiency
• IRIS-Net selection of each channel’s impedance
• Rear-mounted attenuators
• Switchable 50 Hz high-pass filter (Hi-Z mode)
• Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
• Phoenix-type input and output connections
• Remote power-on/off contact
• Programmable power-on delay settings
• Front-to-rear fans

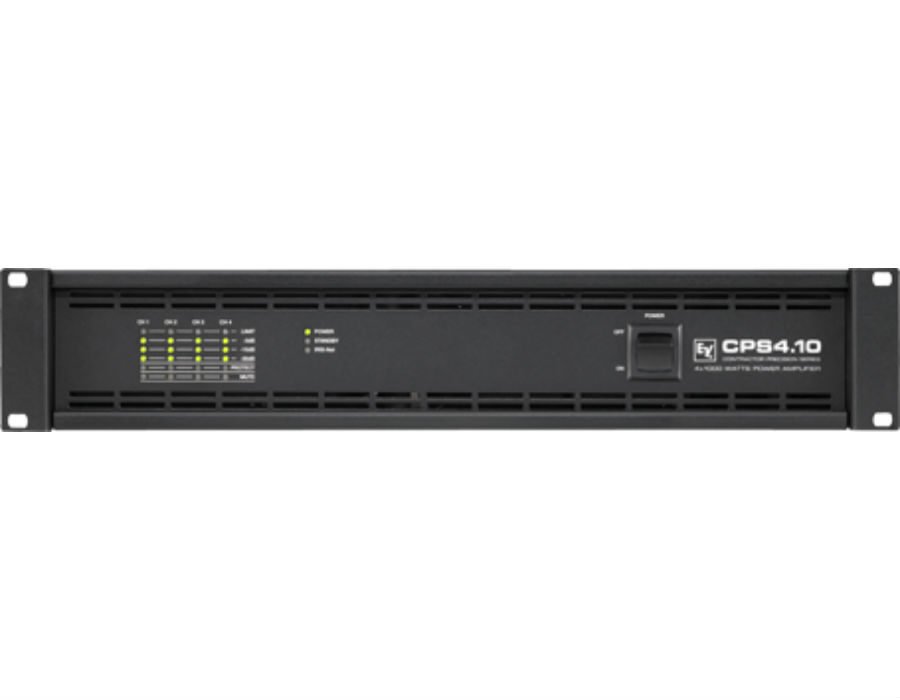

The Electro-Voice CPS4.10 amplifier offers four independent Class-D Variable Load Drive (VLD) amplifier blocks, each one capable of delivering up to 1000 Watts into Low-Z or High-Z loads. Per default, each channel can be configured individually for max.power output into either 2 Ω, 4 Ω, 70V- or 100Vnetworks without involvement of any output transformers. Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition toremarkably low current consumption and heat dissipation, the CPS4.10 provides remote standby switching with just 5 Watts consumption in standby mode. An optional remote control module RCM-810 provides control and supervision features via IRIS-Net,including monitoring of amplifier status and real time load supervision. In addition, via RCM-810 the Variable Load Drive characteristics can be set for max. power output into any load between 2 Ω and 10 Ω, in steps
