Electro-Voice CPS 8.5

Electro-Voice CPS 8.5

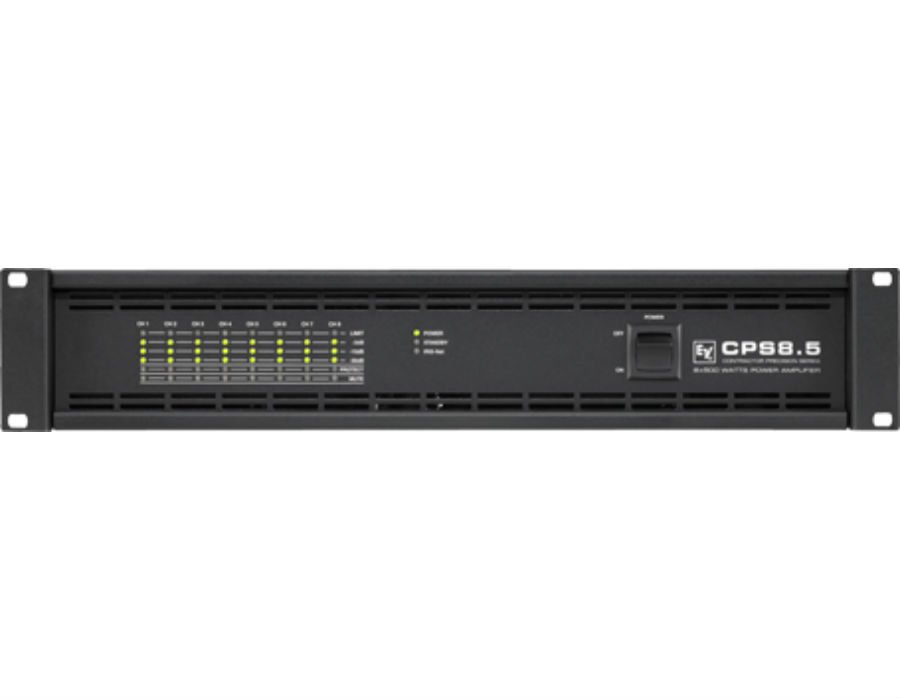

The CPS8.5 is an eight-channel amplifier from Electro-Voice featuring groundbreaking Class-D technology for maximum amp efficiency. Power into 2 Ohms, 4 Ohms, 70V or 100V lines are all possible, and no transformer is required. Additionally, amplifier channels can be bridged in pairs for double output power. A module slot for the optional RCM-810 remote control module provides control network functionality, allowing for remote system diagnostics via IRIS-Net software as well as Variable Load Drive (VLD).

• Eight channels in one compact rack-efficient unit
• 500 W per channel
• 70/100 V operation for distributed systems
• Class-D design for optimum efficiency
• Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
• IRIS-Net selection of each channel’s impedance (2-10 Ω in 0.1 Ω steps)
• Rear-mounted attenuators
• Switchable 50 Hz high-pass filter (Hi-Z mode)
• Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
• Phoenix-type input and output connections
• Remote power-on/off contact
• Programmable power-on delay settings
• Front-to-rear fans

The Electro-Voice CPS8.5 amplifier offers eight independent Class-D Variable Load Drive (VLD) amplifier blocks, each one capable of delivering up to 500 Watts into Low-Z or High-Z loads. Per default, each channel can be configured individually for max. power output into either 2 Ω, 4 Ω, 70V- or 100Vnetworks without involvement of any output transformers. Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition to
