Seamless switcher scales and sizes picture from four Hi-Def sources, and outputs them individually or as windows on a single 4K 600 MHz display

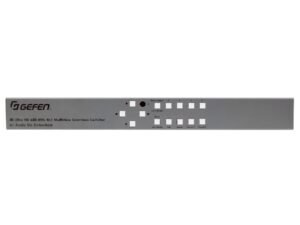

Gefen’s 4K 600 MHz 4×1 Multiview Seamless Switcher is the perfect solution for displaying content from four Hi-Def sources on one 4K Ultra HD display. Each of the windows can be displayed one at a time, or individually scaled and positioned on the screen as desired. Seamless switching ensures no frame loss during window and picture transitions.

This product is HDCP compliant. Input resolutions up to 1080p Full HD (60 Hz) and output resolutions up to 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) are supported. Audio from any of the four HDMI sources can be selected via IR, RS-232, or IP, for playback through the HDMI output and the L/R analog audio output. The analog audio is de-embedded from the HDMI output and can be routed to an outboard sound-reinforcement system, adding presence and impact to AV presentations. Factory presets provide most commonly used arrangements of windows on a display, including single window output. Additional programmable presets allow the user to store and recall custom-configured window arrangements. Presets are accessible via the front panel buttons, On Screen interface, or the web server interface. The 4K 600 MHz 4×1 Multiview Seamless Switcher is controllable via front panel, a handheld IR remote control, RS-232, and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration.

The Gefen Multiview Seamless Switcher is a great solution for small and large commercial venues that require seamless switching between multiple entertainment and signage sources, or need the content from these sources simultaneously displayed on a single screen. Its 1U tall enclosure features removable rack ears. It can be mounted in a standard 19-inch wide rack or conveniently be placed on a shelf.
