GEFEN HDKVM ELR Extender for HDMI and USB over One CAT5

GEFEN HDKVM ELR Extender for HDMI and USB over One CAT5

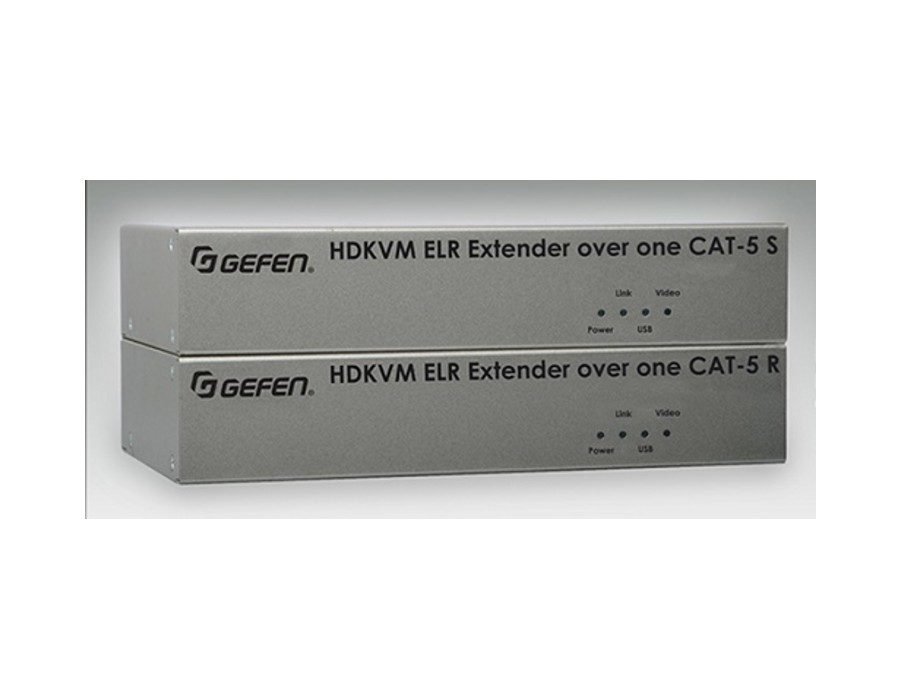

The Gefen HDMI KVM ELR extends HDMI and USB up to 330 feet (100 meters) over a single CAT-5 cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60Hz 4:2:0 or @ 30Hz 4:4:4), 4K Cinema-DCI (4096 x 2160 @ 24 or 30Hz), 1080p Full HD, and 1920 x 1200 (WUXGA) are supported. HDCP, USB 2.0 up to 30 Mbps, and USB 1.1 are also supported. The Receiver unit accommodates up to three USB devices, providing access to keyboard, mouse, touch-panels, printers, scanners, and external storage media. Typical applications include remote workstations and interactive digital signage with touch-screens. This product uses Gefen’s ELR implementation that integrates the proven HDBaseT™ technology with powerful EDID Management capabilities. HDMI and USB are transported over the same CAT-5e cable, reducing cabling costs in addition to providing easier and more reliable installation.
