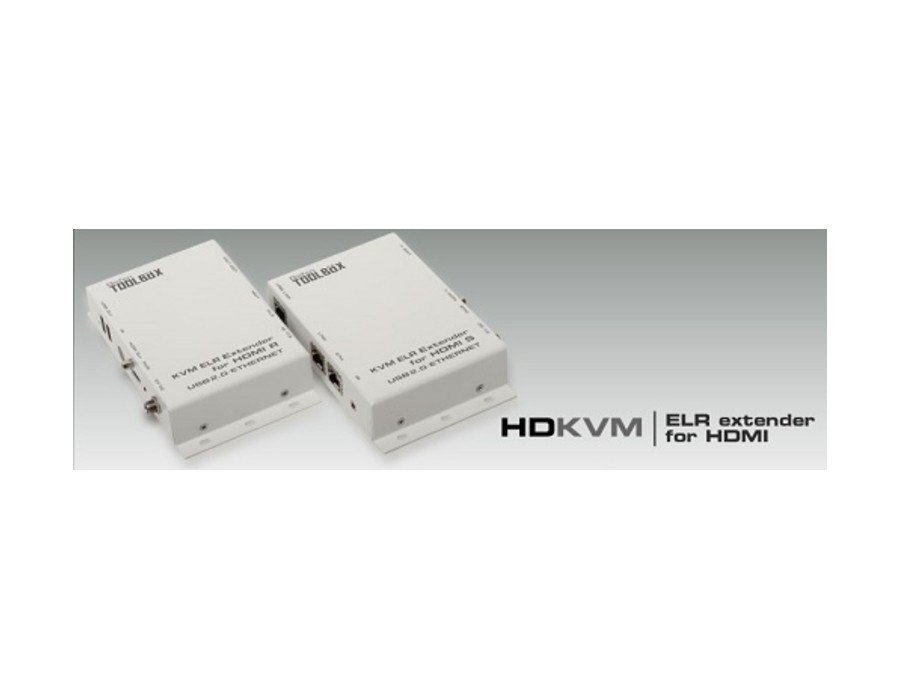

GEFEN HDKVM Extra Long Range Extender

GEFEN HDKVM Extra Long Range Extender

The GefenToolBox HDKVM ELR is designed to extend HDMI, USB 2.0, Ethernet, and IR from a home theater multimedia PC that can be located up to 330 feet (100 meters) away. The Receiver unit allows the connection of HDMI and two USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems in addition to the display. This product uses Gefen ELR (Extra Long Range) technology, supporting HDBaseT™ specifications, allowing transmission of HDMI and IR signals along the same CAT-5 cable. USB 2.0 is extended over the second CAT-5 cable. Hi-Def resolutions up to Ultra HD 4K (3840 x 2160 @ 60Hz 4:2:0 or @ 30Hz 4:4:4), 4K Cinema (DCI) (4076 x 2160 @ 24 or 30Hz, 4:4:4), 1080p Full HD, and 1920 x 1200 (WUXGA) are supported.The Ethernet ports on both Sender and Receiver units connect to network devices.
