HK Audio COSMO C 10

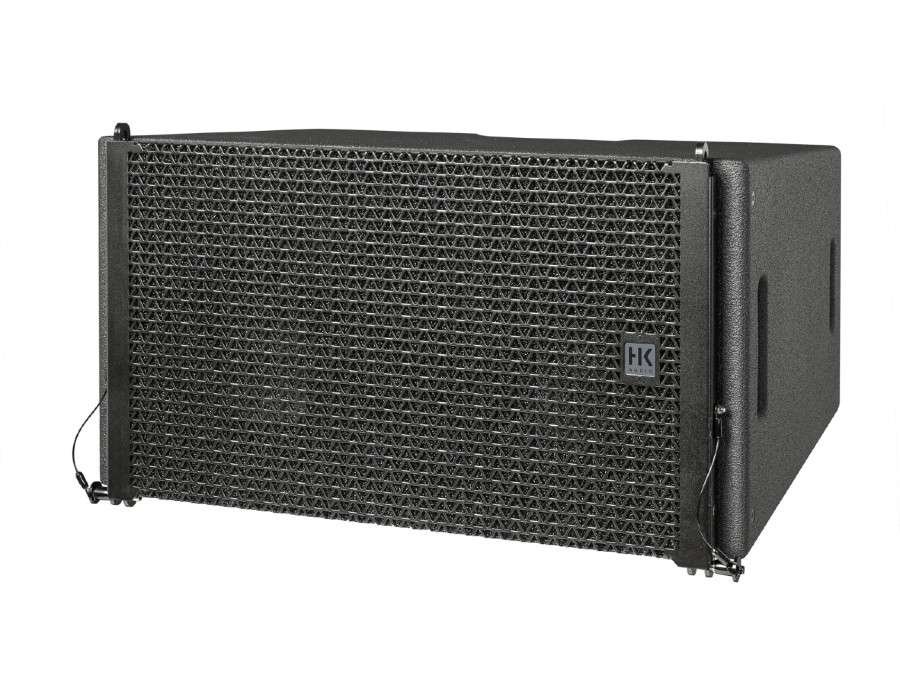

HK Audio COSMO C 10 Line Array Speaker

The COSMO C 10 has two 10″ neodymium speakers with a horizontal dispersion of 60°. It is therefore ideally suited as a full-range line array for large events with required ranges of 80 meters and more.

The narrow horizontal dispersion allows a large throw range with targeted sound distribution.

The asymmetrical sound distribution of the C 10 mid/high unit can be modularly adjusted by pairing it with C 6 and C 8 units.

This allows better control of the horizontal dispersion of a pure C 10 line array without compromising on the useful sound pressure level. It requires no adapters and leaves no gaps when combined with C 6 and C 8 units, making the C 10 ideal as the top section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system.

This extends the operating periods of each component compared to other system families.

The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.

Specifications

Concept: Passive 2-way mid/high unit

Cabinet principle: Bass reflex

Power handling RMS, Program, Peak: 800 W, 1600W, 3200W

Nominal impedance: 8 Ohms

Max. SPL average: 137 dB

Max. SPL peak: 147 dB

Sensitivity 1 W/1 m: 108 dB

Crossover frequency: 850 Hz

Frequency range -6 dB: 58 Hz – 18 kHz

Frequency range -10 dB: 53 Hz – 19 kHz

Dispersion angle -6 dB (horizontal x vertical): 60° x 10° (opt. 80° x 10°)

Components

Mid/high frequency: 2 x 10″ B&C cone speaker with neodymium magnet and 2.5″-voice coil

High frequency: 2 x 1.4″ B&C compression driver with neodymium magnet and 3″-voice coil

Crossover: High pass: 12 dB/oct., Low pass: 12 dB/oct.

Horn: MCT-Horn
