HK Audio COSMO C 6

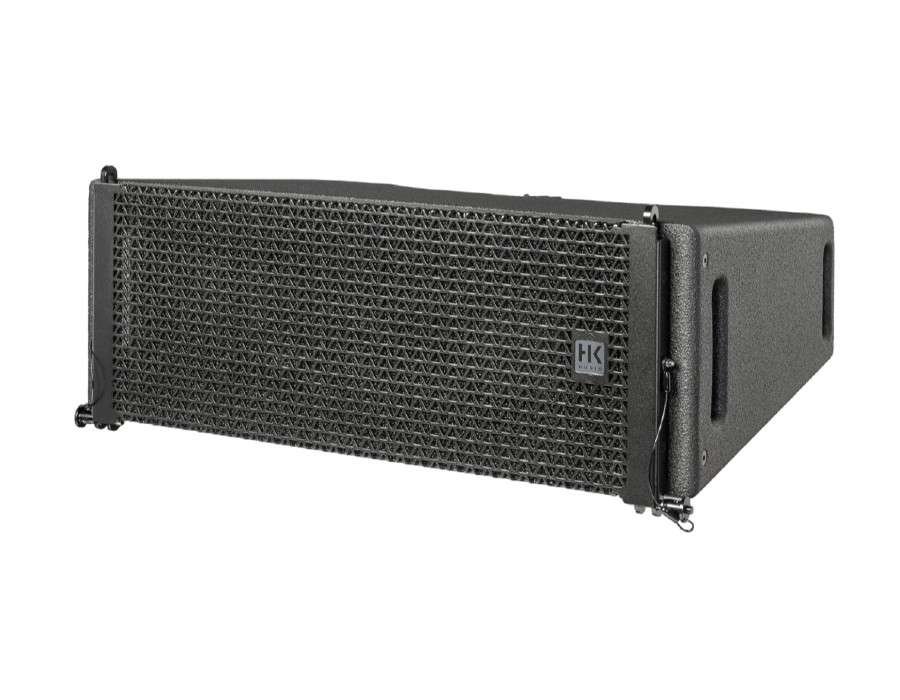

HK Audio COSMO C 6 Compact Line Array Speaker
The wide horizontal dispersion of 100° and the low overall height make the compact C 6 array an ideal solution for very wide audience areas. Thanks to its low weight, the C 6 can meet high acoustic requirements, even with limited load capacity. The wide frequency range makes it perfect for use in pure speech applications without additional subwoofers.
Two 6.5″ transducers loaded to an acoustic coupler increase the maximum sound pressure level. When paired with subwoofers, the C 6 mid/high unit really shows its strengths for rock and pop gigs. It requires no adapters and leaves no gaps when combined with C 10 and C 8 units, making the C 6 ideal as the bottom section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families.
The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.
Specifications
Concept: Passive 2-way mid/high unit
Cabinet principle: Bass reflex
Power handling RMS, Program, Peak: 400 W, 800W, 1600W
Nominal impedance: 16 Ohms
Max. SPL average: 133 dB
Max. SPL peak: 142 dB
Sensitivity 1 W/1 m: 102 dB
Crossover frequency: 1 kHz
Frequency range -6 dB: 75 Hz – 18 kHz
Frequency range -10 dB: 70 Hz – 19 kHz
Dispersion angle -6 dB (horizontal x vertical): 100° x 10°
Components
Mid/high frequency: 2 x 6.5″ SICA cone speaker with neodymium magnet and 2″-voice coil
High frequency: 1 x 1.4″ B&C compression driver with neodymium magnet and 3″-voice coil
Crossover: High pass: 12 dB/oct., Low pass: 12 dB/oct.
Horn: MCT-Horn
