HK Audio COSMO C 8

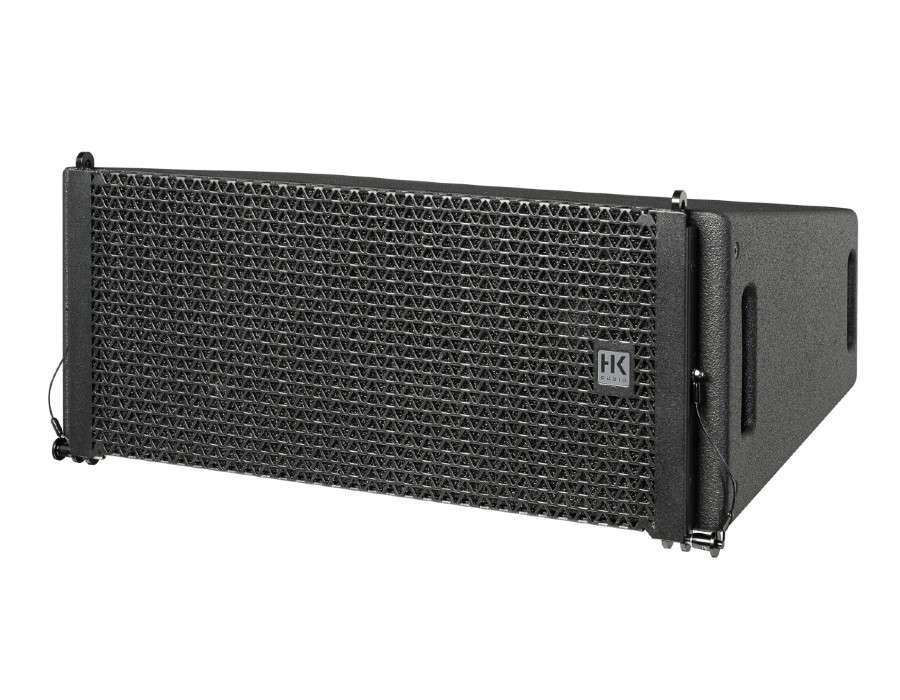

HK Audio COSMO C 8 Line Array Speaker
The COSMO C 8 has two 8″ neodymium speakers with a horizontal dispersion of 80°. It is therefore ideally suited as a full-range line array for medium-sized events with required ranges of 30 meters and more. The medium-wide horizontal dispersion makes the C 8 highly versatile. Its asymmetrical sound distribution can be modularly adjusted by pairing it with C 6 and C 10 units, resulting in an almost perfect sound distribution.
Thanks to minimal distortion and a high sound pressure level, the COSMO delivers impressive results, even beyond its versatile field of application. When paired with subwoofers from the C SUB series, it really shows its strengths for rock and pop gigs. It requires no adapters and leaves no gaps when combined with C 6 and C 10 units, making the C 8 ideal as the center section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system.
This extends the operating periods of each component compared to other system families. The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.
Specifications
Concept: Passive 2-way mid/high unit
Cabinet principle: Bass reflex
Power handling RMS, Program, Peak: 600 W, 1200W, 2400W
Nominal impedance: 8 Ohms
Max. SPL average: 132 dB
Max. SPL peak: 136 dB
Sensitivity 1 W/1 m: 103 dB
Crossover frequency: 800 Hz
Frequency range -6 dB: 63 Hz – 18 kHz
Frequency range -10 dB: 57 Hz – 19 kHz
Dispersion angle -6 dB (horizontal x vertical): 80° x 10°
Components
Mid/high frequency: 2 x 8″ SICA cone speaker with neodymium magnet and 2.5″-voice coil
High frequency: 1 x 1.4″ B&C compression driver with neodymium magnet and 3″-voice coil
Crossover: High pass: 18 dB/oct., Low pass: 18 dB/oct.
Horn: MCT-Horn
