HK Audio IL 60-CTC

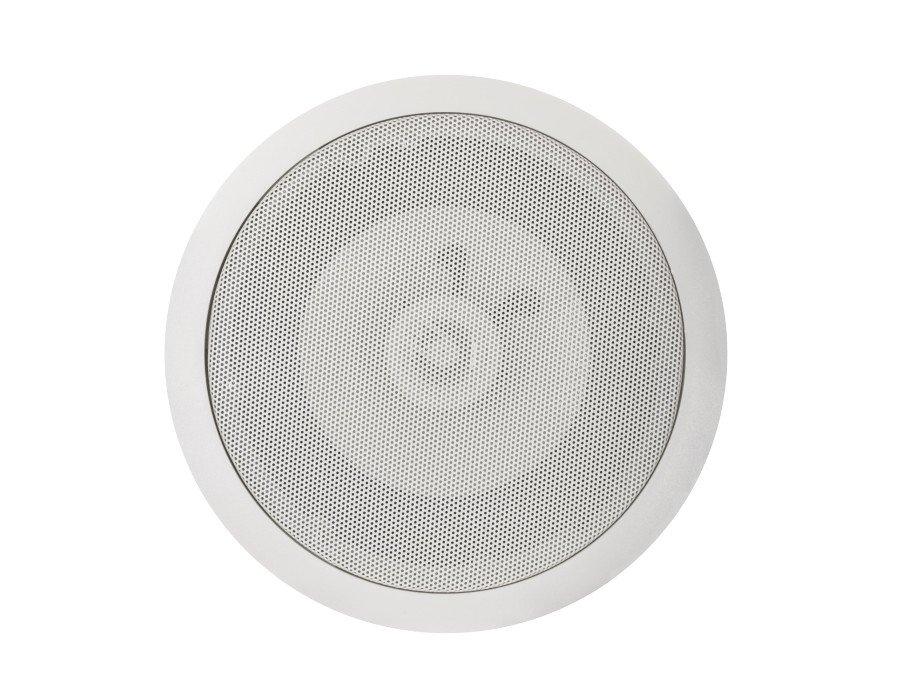

HK Audio IL 60-CTC In-ceiling speaker

Ceiling loudspeaker with rear chamber for ceilings from 10 – 40 mm.

Integrated mounting brackets and pluggable protective grille. Equipped with 6.5″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.

This ceiling loudspeaker, complete with a rear chamber, is designed for seamless integration into ceilings with thicknesses ranging from 10 to 40 mm. Offering robust performance and an elegant appearance, it is suitable for various professional and commercial applications, such as conference rooms, retail environments, offices, and educational institutions.

The speaker is equipped with a 6.5″ woofer and a 0.75″ tweeter in a coaxial arrangement, ensuring clear and balanced sound reproduction, particularly optimized for short listening distances. This makes it an ideal choice for spaces requiring excellent speech intelligibility and crisp audio detail.

The unit includes integrated mounting brackets, streamlining the installation process and ensuring a secure, reliable fit into the ceiling. A pluggable protective grille not only provides added durability but also simplifies maintenance by allowing for quick removal and cleaning.

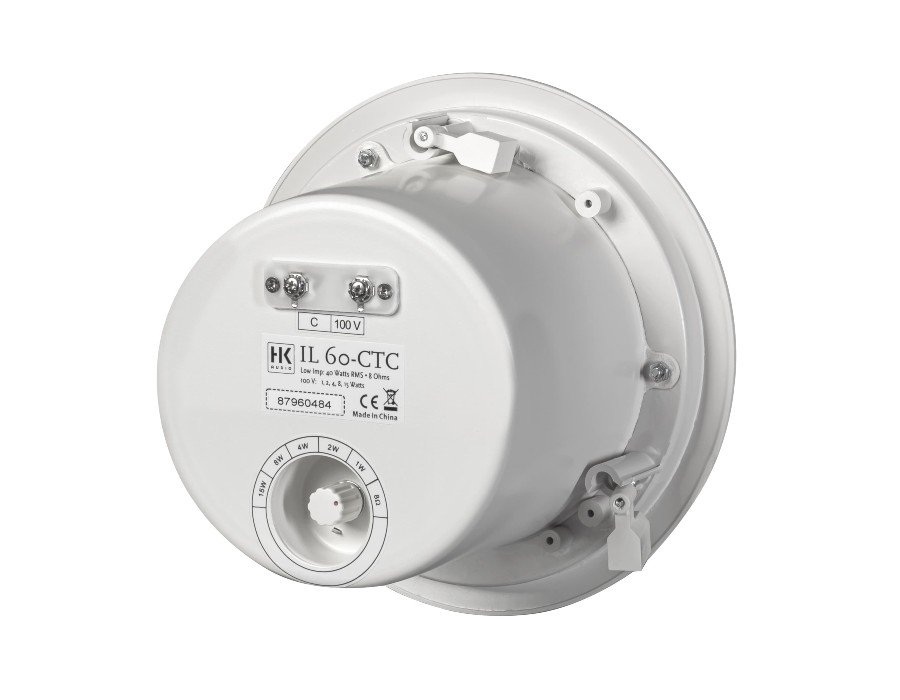

The speaker features an integrated passive crossover for smooth frequency distribution between the woofer and tweeter, enhancing overall sound quality. Additionally, it includes a switchable 100 V transformer with five selectable power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W), offering flexibility to adapt the speaker’s output to different system configurations and room requirements. Even after installation, the power tapping can be easily modified via a conveniently accessible switch, allowing for quick adjustments without the need for disassembly.

With a standard white finish, the loudspeaker offers a clean and modern aesthetic suitable for a wide range of interiors. For added versatility, the surface can be repainted, enabling customization to match specific design schemes or color preferences.

This combination of high performance, ease of installation, and flexible customization makes the ceiling loudspeaker an excellent choice for diverse audio applications.
