Intelix DL-1H1A1UC-WPKT-W

Intelix DL-1H1A1UC-WPKT-W

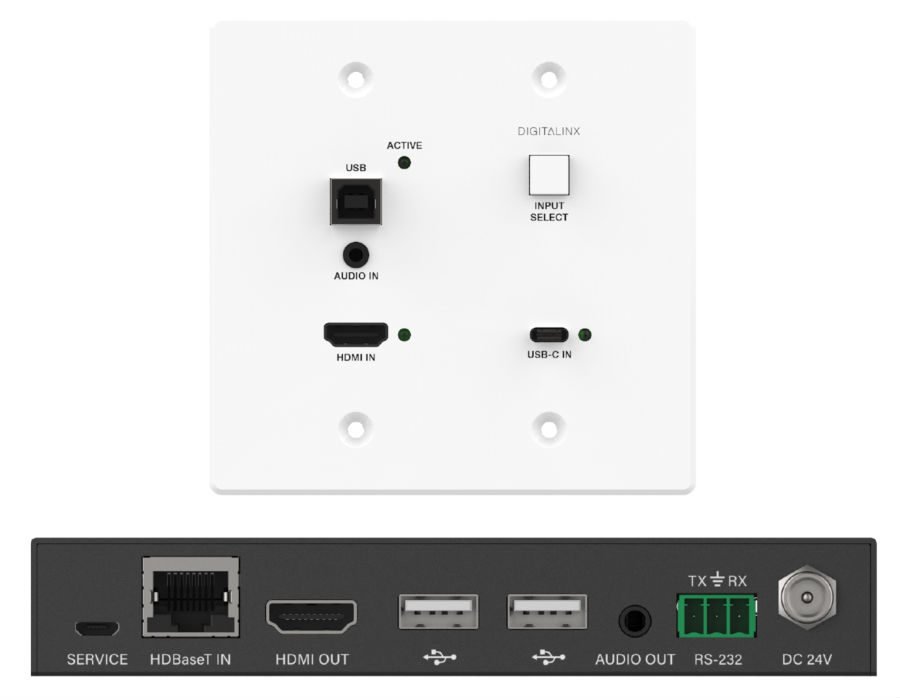

The Digitalinx DL-1H1A1UC-WPKT-W HDBaseT 2.0 extender set transmits HDMI or USB-C audio and video, analog audio, USB 2.0 High Speed data signals (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1UC-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The 3.5 audio input/output on the system is completely separate and is not dependent on the HDMI or USB input source to be active, this way stereo audio can be transmitted through the system independently. The Digitalinx DL-1H1A1UC-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant. The USB-C input supports ALT-DP mode and can support video, audio, data and power charging up to 40 watts. The DL-1H1A1UC-WPKT-W supports auto switching however an input select button in provided to switch between the HDMI and USB-C inputs manually.

The DL-1H1A1UC-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate. However if using the USB-C input for a source device and power charging is required, both the receiver and the wall plate must be powered simultaneously.

• Single shielded Cat6/6a cable 4K to 40 meters, 1080P to 70 meters
• Supports HDMI 1.4b, HDCP 2.2 and HDCP 1.4 encryption
• Supports resolutions up to 4K2K@30Hz (4:4:4) or 4K2K@60Hz (4:2:0) 10.2G
• USB-C supports ALT-DP Mode, transmits audio, video, data and power charging up to 40W
• Dedicated 3.5mm analog audio channel independent of HDMI
• Optional second power supply included to power TX for USB-C charging
• Full functional USB-C supports USB 2.0 High Speed up to 190Mbps data rate
• USB-B supports USB 2.0 High Speed up to 190Mbps data rate
• 24V POC Power Supply for RX side can power the wall plate remotely
• TX is standard US 2-Gang size
• ** Now Supporting «New» ActivPanel displays from Promethean!! Please contact Liberty support for more information!

Applications

• • HDMI extension and A/V routing for presentation
  • Education, Boardrooms, House of Worship, Collaboration

*Liberty AV, its affiliated brands and parent companies, are not affiliated, associated with, or endorsed by Promethean®. Any mention of the Promethean® brand is to promote feature compatibility and provide information.
