Intelix DL-HD50C

Intelix DL-HD50C

The DigitaLinx DL-HD50C is an HDMI Extender over Single Cat6 with IR up to a distance of 164ft/50m. The DL-HD50C features EDID management, which allows and encourages source and display “handshake” for seamless integration. Deep color video, 1080p High Definition resolution, DTS-HD or Dolby TrueHD audio are supported with this extender.

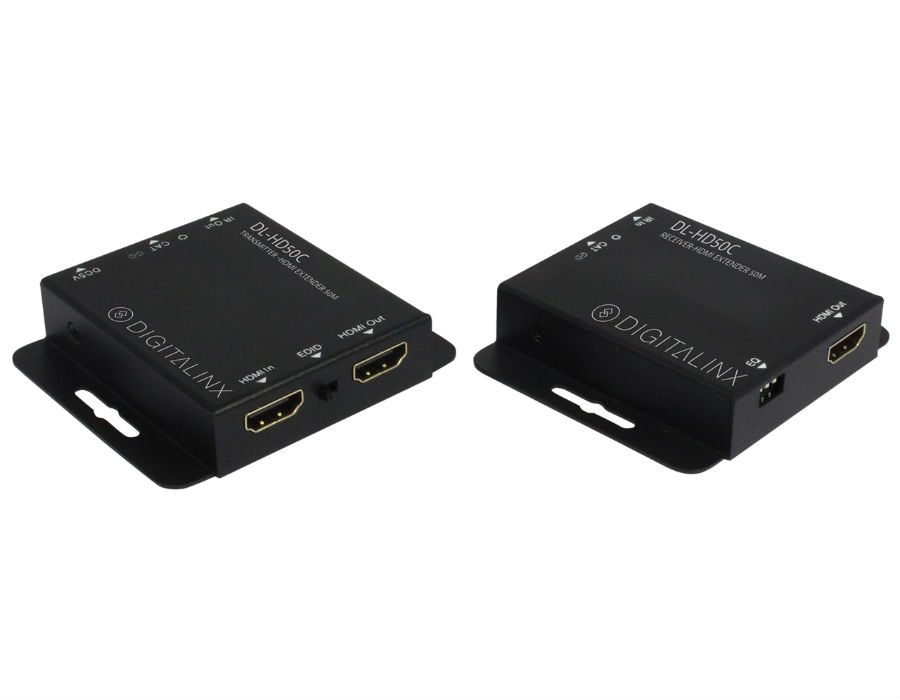

In addition, The DL-HD50C is sold as a set with a transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR and carries the signals via one cost effective Cat6 F/UTP cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. The extender offers the most convenient solution for HDMI extension over a single Cat6 with long distance capability, and is the perfect solution for any application.

• Simple and cost-effective HDMI over single Cat Extender
• Uncompressed 1080P/60Hz up to 50 meters over single Cat6
• HDMI 1.3b and HDCP compliance
• Independent HDMI equalization adjustment button.
• One-way IR pass through
• Built-in Surge protection: Voltage ± 1kV
• Compact size for easy installation.
• HDMI output on TX for local display
• Extender requires power on both ends

Applications

• Extension of HDMI/DVI signals
• Plenum longer distance HDMI/DVI Extension
• Small space issues where TWP can be run but not HDMI
