The Digitalinx EDU-KIT-001 is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. Utilizing the Valens Colligo VS2110 series chips, power, control, video up to 1080p, and audio are transported over a single 30m (98 ft) Category 6A cable between the wall plate transmitter and the receiver. The wall plate control module connects to the wall plate transmitter with a second Category 6A cable. All the power needed for the system is provided by the receiver. Additionally, the receiver features a built-in web GUI for control and analog audio de-embedding to a built-in 2×20 watt stereo amplifier.

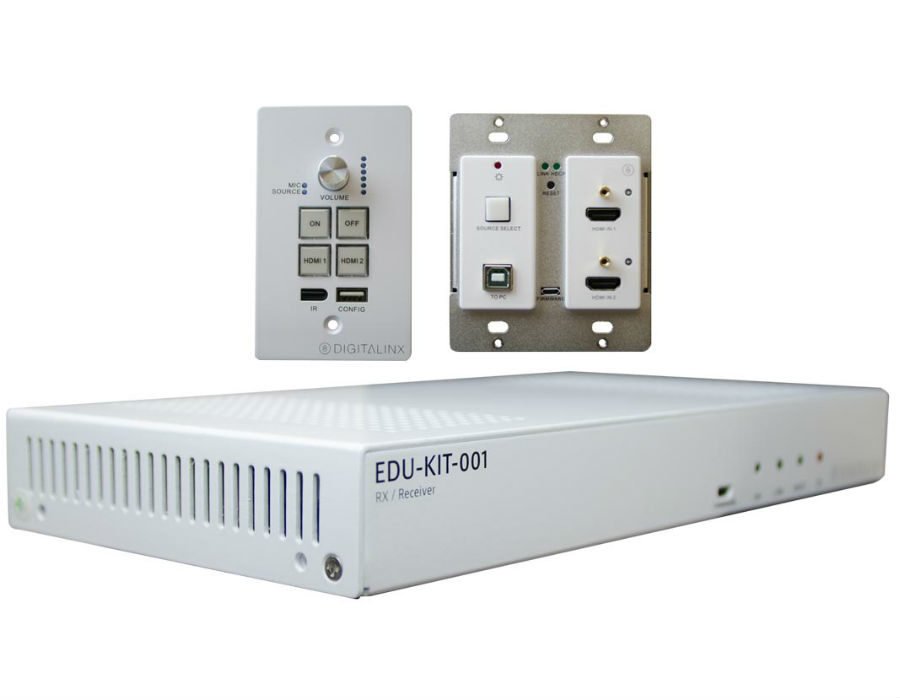

• Includes wallplate transmitter, wallplate control panel and receiver/processor
• Wallplate transmitter features:
  • Two HDMI inputs with automatic or manual switching modes
  • USB-B 2.0 High Speed connection for local PC and interactive whiteboard integration
  • System uses HDBaseT 2.0 technology circuit for AV and USB2.0 extension
  • Single twisted pair for data and power
• Wallplate control panel features:
  • System on/off
  • Mic and source volume control
  • IR learning for controlling connected devices
  • Single twisted pair for data and power
• Receiver/processor features:
  • Mic/line input
  • HDMI output with audio de‐embedding
  • IR and RS232 output for display and/or screen control
  • 2x20w 4 ohm amplifier for speaker integration
  • TCP/IP connectivity for system wide monitoring and diagnostics
  • USB-A connection for local PC and interactive whiteboard integration
  • Hardware for ceiling or wall mounting

Applications

• K-12, Higher Ed, Conference or Training room solution
• Extension of two HDMI sources to one HDMI destination
• Small presentation space with audio reinforcement
• Ideal for training, education, and meeting installations
