Intelix INT-AS2H1U-TX

Intelix INT-AS2H1U-TX

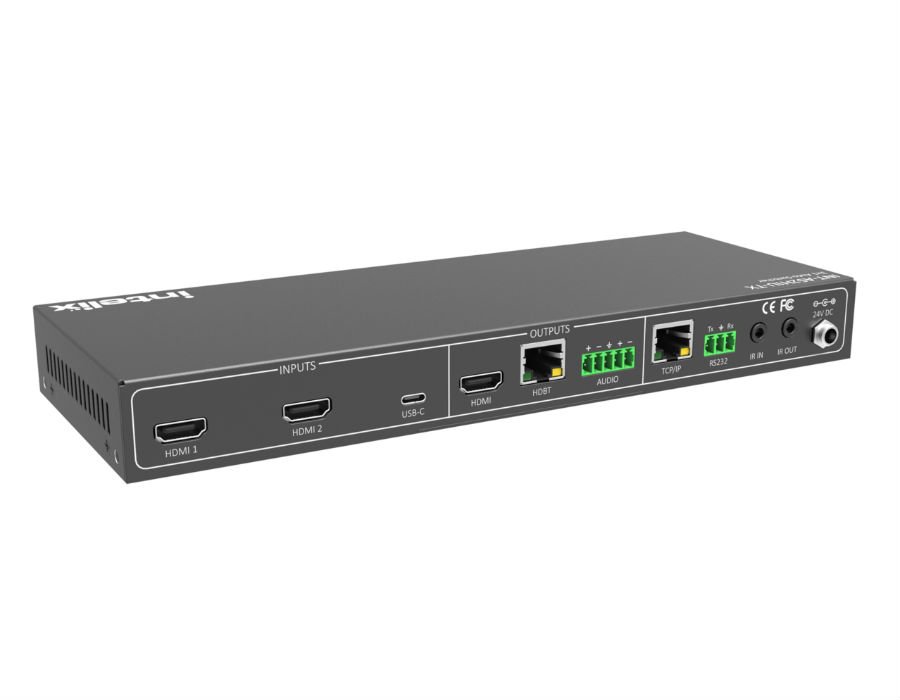

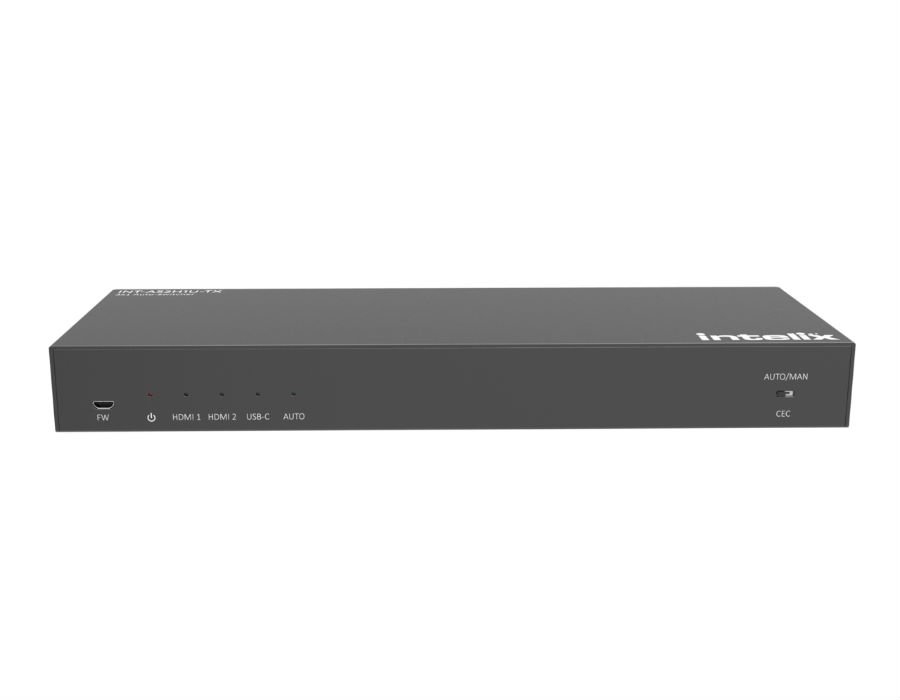

The Intelix INT-AS2H1U-TX is a 3×1 A/V auto switcher that features two HDMI inputs, one USB-C input, one HDMI output, one HDBaseT output and one balanced analog audio output. The USB-C input supports ALT-DP mode and can also charge a connected source device up to 40 watts. The built in HDBaseT transmitter output can transmit HDMI or USB-C audio and video, RS232 and bi-directional IR over a single solid core shielded Category cable to a compatible Intelix HDBaseT receiver up to 70 meters or 230 feet. The INT-AS2H1U-TX supports 1080p video signal up to 70m/230’ and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m/130’. The switcher supports CEC pass through (HDBaseT receiver only) and is HDCP 2.2 compliant. A built in web GUI allows easy configuration of A/V routing, EDID, display on/off automation, network and HDCP features. 48V PoH is built in to allow the INT-AS2H1U-TX HDBaseT transmitter output to power a compatible Intelix receiver.

• 2 HDMI & 1 USB-C inputs support resolutions up to 4K
• 1 HDBaseT output with remote PoH power extended up to 70m
• 1 HDMI Output; Mirrors HDBaseT output
• USB-C supports ALT-DP Mode, provides 40w power to device
• Auto or manual switching
• Can be controlled via TCP/IP, RS232, or IR
• Integrated simple display ON/OFF control via RS232 or CEC
• Control can be extended to HDBaseT receiver
• Analog audio de-embed
• Locking power supply
• HDCP 2.2 compliant
• HDBaseT compliant and pairs with all Intelix HDBaseT products
