Intelix INT-HD70-TX

Intelix INT-HD70-TX

The Intelix INT-HD70-TX extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip. The INT-HD70-TX supports a 1080p video signal, including HDCP 2.2 and multichannel audio, up to 70m, as well as 3D and 4K x 2K (UHD) signals up to 40m. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required. The power supply is included; IR accessories (DIGIB-EMT and DIGIB-EYE) are sold separately.

The INT-HD70 series extenders are compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.

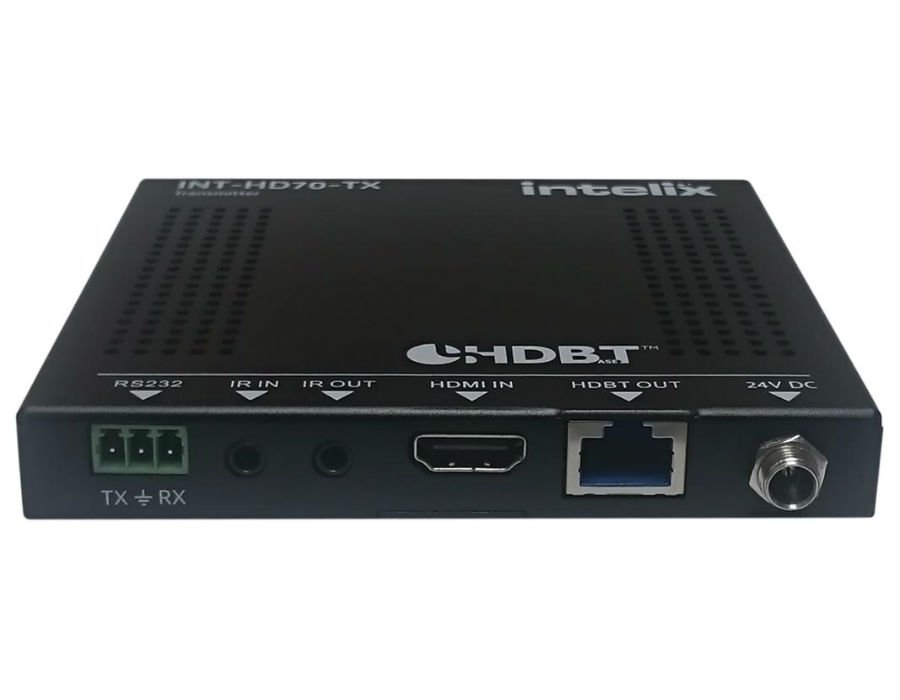

• Extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip
• 1080p, including HDCP 2.2 and multichannel audio, up to 70m
• 3D and 4K x 2K (UHD) signals up to 40m

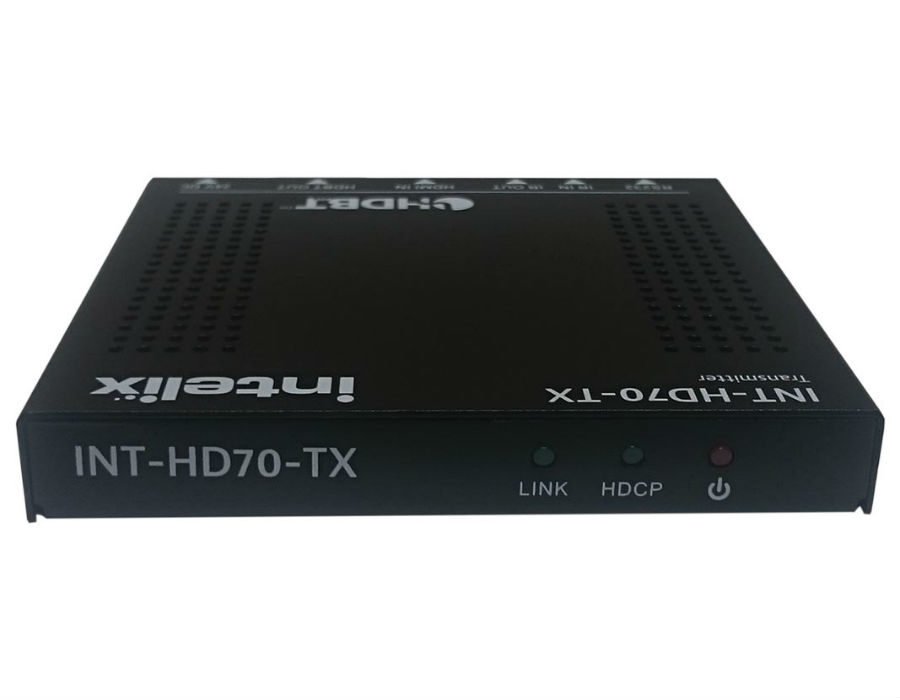

• Built-in surge protection and diagnostic LEDs
• Powered at either the TX or RX end, and only one power supply is required
• The power supply is included; IR accessories (DIGIB-EMT and DIGIB-EYE) are sold separately.
• Compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.
