JBL 708i

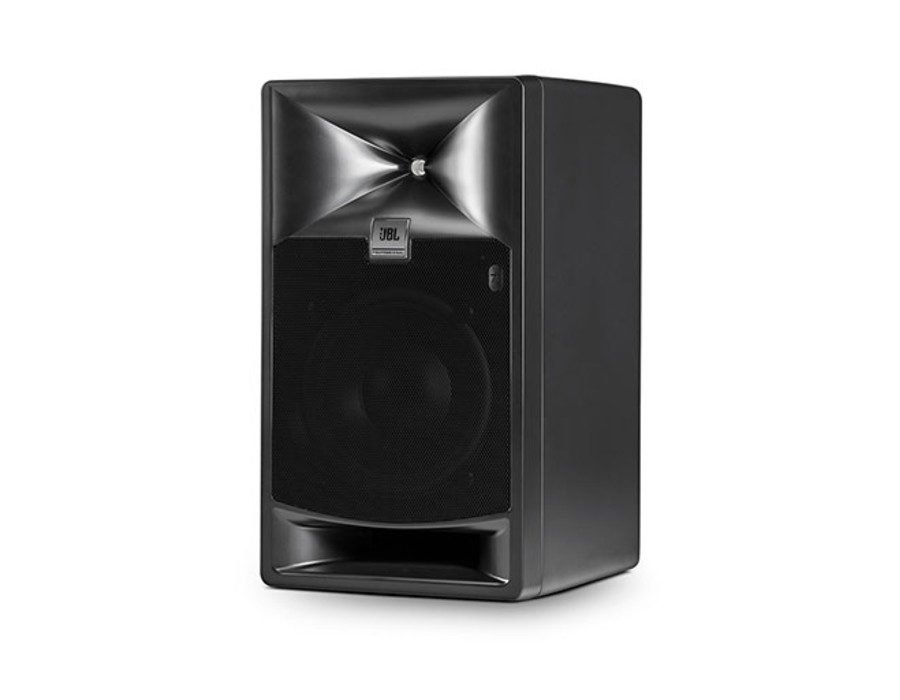

JBL 708i 8″ Master Reference Monitor
The first in JBL’s new 7 Series line, the 705i and 708i models answer the call for next generation multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for our flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended frequency response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, 705i and 708i Studio Monitors are the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats.
- Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks
- Next Generation Driver Technology
- Patent Pending Image Control Waveguide
- Compact, Install Friendly Enclosures
SIGNAL PROCESSING AND CONTROL:
• Speakers are Centrally Processed using BSS Soundweb London
Signal Processors.
• The BSS London allows perfectly matched tunings for the LSR708i and
LSR705i models.
• Available Room tuning filters provide a more consistent listening experience in
a range of post production and broadcast rooms.
• Inputs to the system can be analog or digital.
• Session functions such as level, individual speaker solo, fold down and more
can be centrally controlled via BSS hardware, Audio Architect Software, or
tablet via a wireless router.
Specifications
Frequency Response (±3 dB) 45 Hz – 23 kHz
Frequency Range 35Hz – 36 kHz
Maximum Continuous SPL (80 Hz – 20 kHz) >108 dB SPL / 1m
Maximum Peak SPL (80 Hz – 20 kHz) >114 dB SPL / 1m
HF Driver 2409H
LF Driver 728G – 8in (127mm)
Dividing Network Transition Frequency 1.7 kHz
Input Connectors Phoenix Terminals accept 12 gauge speaker wire
Dimensions (HxWxD) 25.2 lb (11.5 kg)
Enclosure Birch plywood reinforced for mounting
Mounting Top, bottom and rear mounting points. 4-hole mounting pattern
