JBL AC118S

Name: JBL AC118S
SKU: 48893
Availability: BackOrder

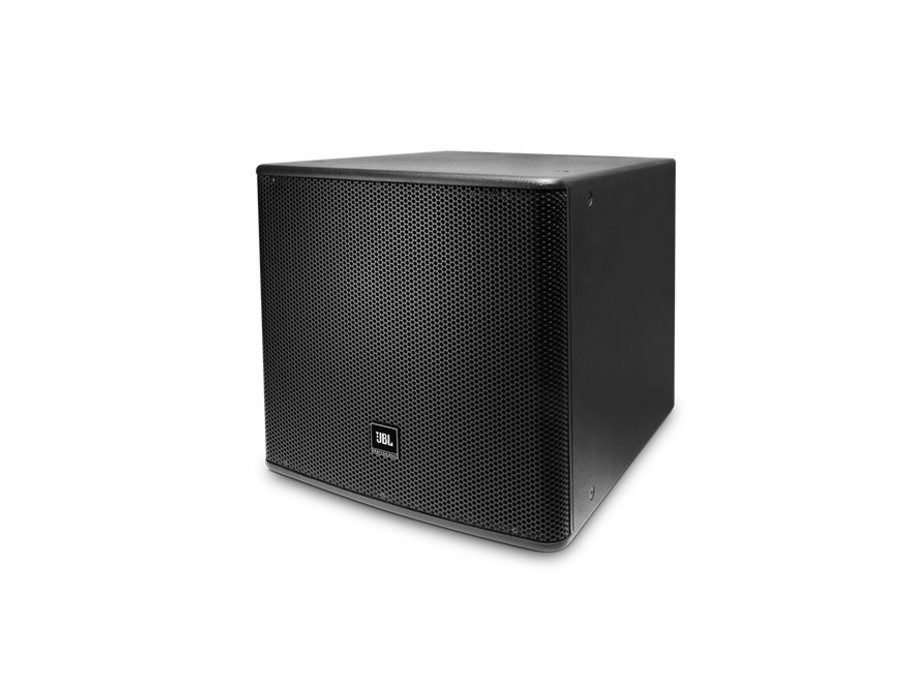

JBL AC118S 18″ High Power Subwoofer System

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

SPECIFICATIONS

Frequency Range (-10 dB) 32 Hz – 250 Hz

Frequency Response (±3 dB) 40 Hz – 250 Hz

System Sensitivity (1w @ 1m) 95 dB

Nominal Impedance 8 ohms

Maximum SPL(1m) 122 dB (128 dB peak)

Power Rating (Continuous/Program/Peak) 450 W/900 W/1800 W

Low frequency driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil

Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals

Enclosure Material 18 mm multi-ply hardwood plywood

Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

Suspension / Mounting 12 x M10 threaded suspension points

Dimensions (H x W x D) 548 mm x 561 mm x 720 mm
21.5 in x 22.0 in x 28.3 in

Net Weight 32.3 kg (71.2 lbs)

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.
