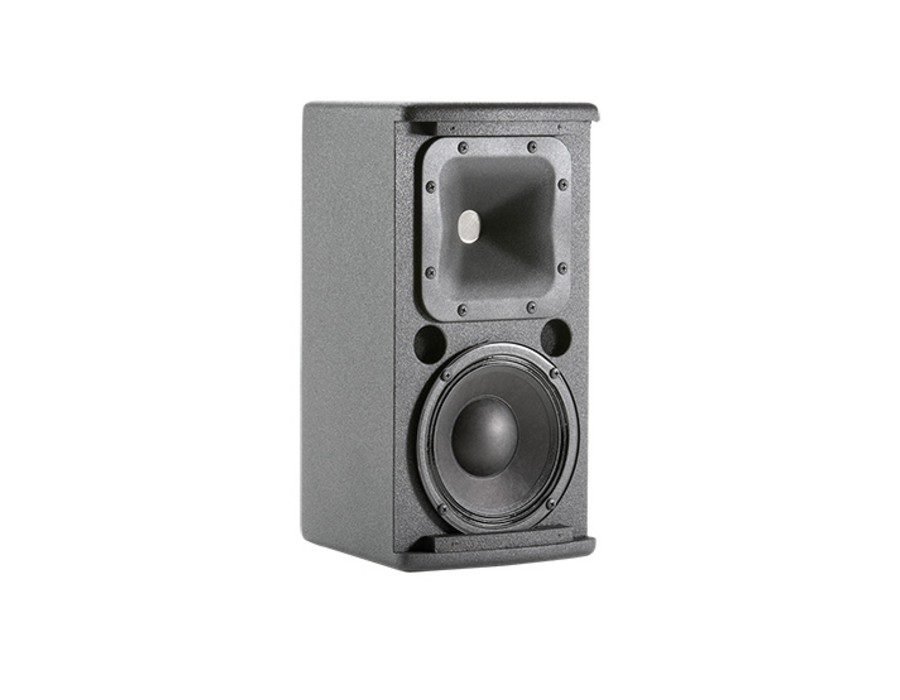

JBL AC16

JBL AC16 Ultra Compact 2-way Loudspeaker with 1 x 6.5” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

• 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
• 165 mm (6.5 in) LF transducer
• Ultra compact enclosure
• 320W Program
• Dual Neutrik NL4 connectors plus screw terminal
• Attachment points for optional U-bracket, third part OmniMount^® type bracket and stand mount accessory

Specifications

Frequency Range (-10dB)  55 Hz -20 kHz

Frequency Response (±3 dB)  65 Hz -18 kHz

System Power Rating  250 W (AES rated)
160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)

Nominal Impedance  16 Ohms

Coverage Pattern  90° x 90°

Dimensions (H x W x D)  381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)

Net Weight (each)  7.2 kg (15.8 lb)

Crossover Modes  Passive

Maximum SPL (1m)  110 dB

System Sensitivity (1w @ 1m)  90 dB SPL

LF Driver  1 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil

Nominal LF Driver Impedance  16 Ohms

HF Driver  1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil

Enclosure  12 mm and 15 mm exterior grade multi-ply hardwood plywood

Suspension Attachment  5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.

Environmental  Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
