JBL AC18/26

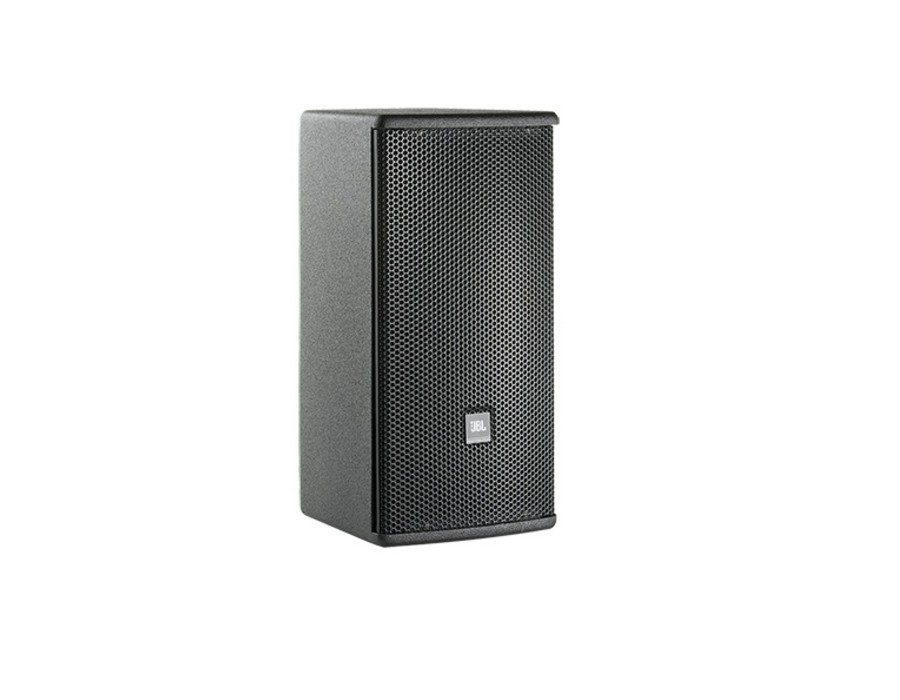

JBL AC18/26 Compact 2-way Loudspeaker with 1 x 8” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

1” Exit Compression Driver Coverage PT™ Waveguide
205 mm (8 in) LF transducer
Compact enclosure
500W Program
Dual Neutrik NL4 connectors plus screw terminal
Attachment points for optional U-bracket, third part OmniMount^® type bracket and stand mount accessory

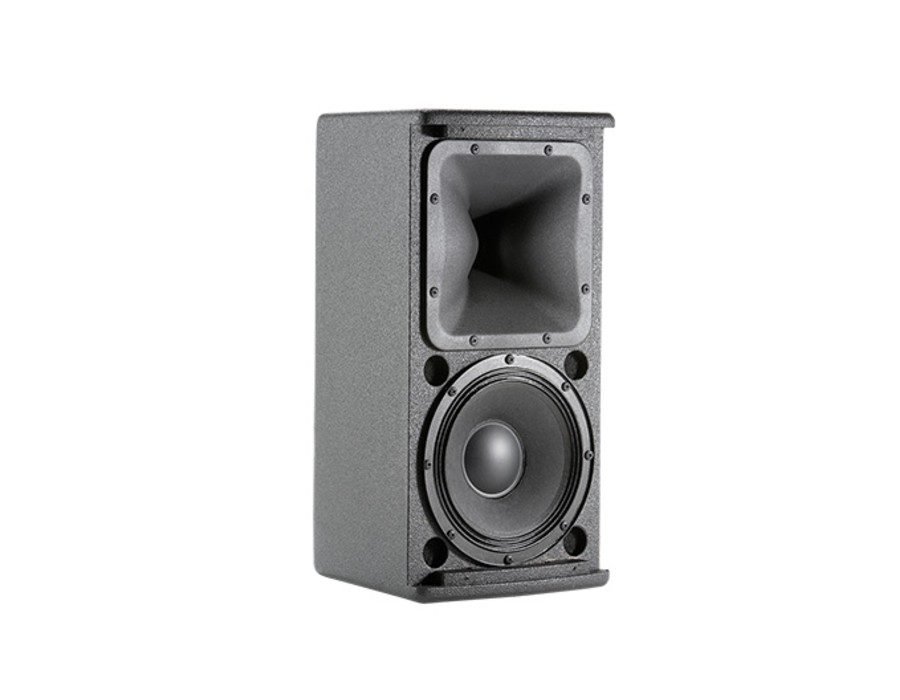

The AC18/26 is a compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area.

Specifications

Frequency Range (-10dB) 52 Hz – 20 kHz

Frequency Response (±3 dB) 63 Hz – 19 kHz

System Power Rating 375 W (AES rated)
250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)

Impedance 8 ohms

Coverage Pattern /26: 120° x 60°/95: 90° x 50°

Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)

Net Weight (each) 12.8 kg (28.2 lb)

Crossover Modes Passive

Maximum SPL (1m) 116 dB

System Sensitivity (1w @ 1m) 92 dB SPL

LF Driver 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
