• 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
• 165 mm (6.5 in) LF transducer

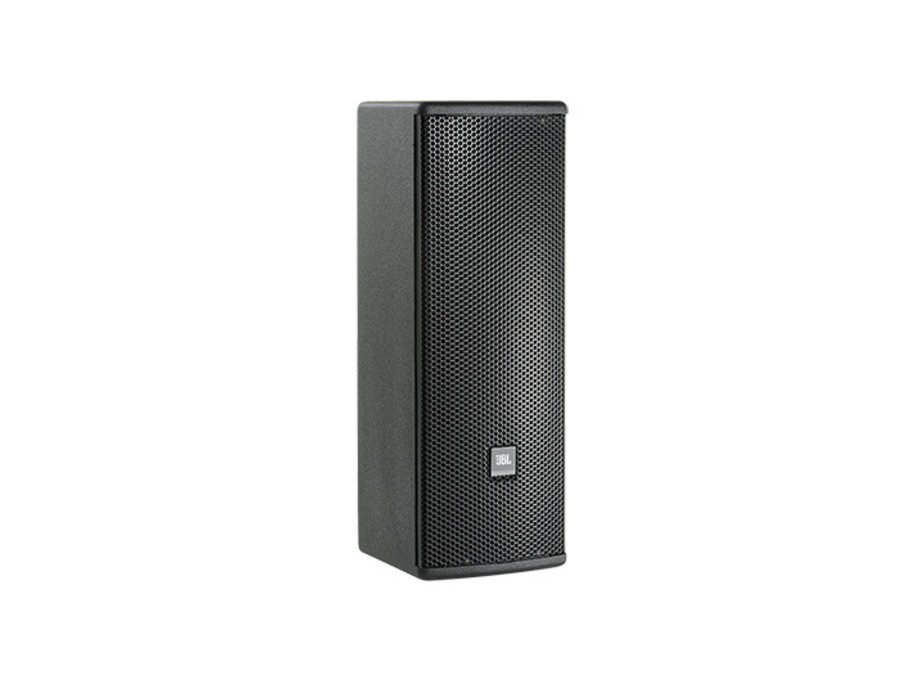

• Ultra compact enclosure
• 360W Program
• Dual Neutrik NL4 connectors plus screw terminal
• Attachment points for optional U-bracket, third part OmniMount^® type bracket and stand mount accessory

Specifications

Frequency Range (-10dB)  55 Hz -20 kHz

Frequency Response (±3 dB)  70 Hz -18 kHz

System Power Rating  350 W (AES rated)
180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated)

Impedance  8 ohms

Coverage Pattern  90° x 90°

Dimensions (H x W x D)  539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in)

Net Weight (each)  11.0 kg (24.3 lb)

Maximum SPL (1m)  117 dB

System Sensitivity (1w @ 1m)  92 dB SPL

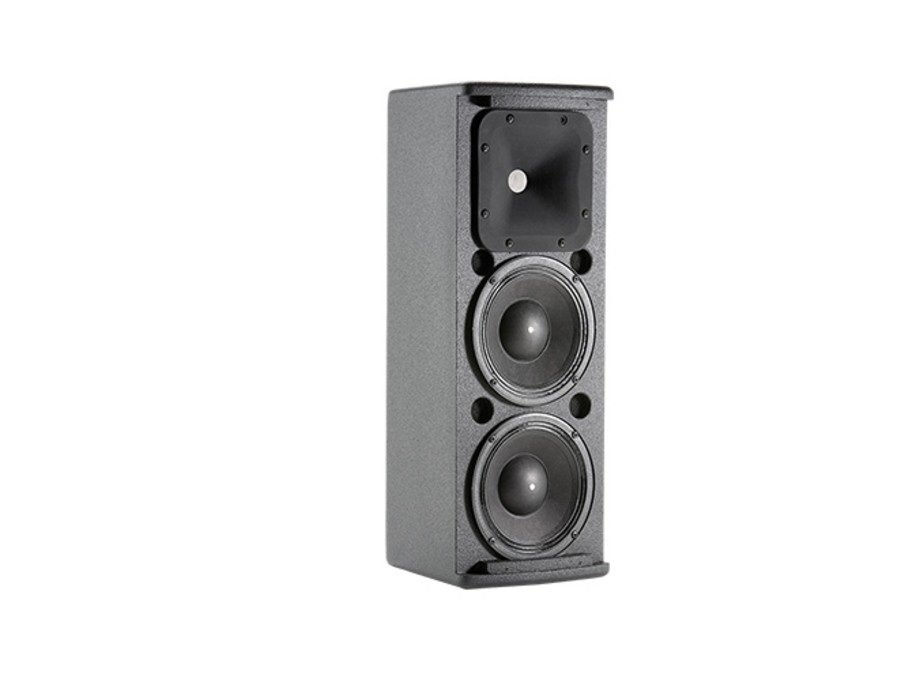

LF Driver  2 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil

Nominal LF Driver Impedance  8 Ohms

HF Driver 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil

Enclosure  12 mm and 15 mm exterior grade multi-ply hardwood plywood

Suspension Attachment  6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 or MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.

Environmental  Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
