JBL AC28/26

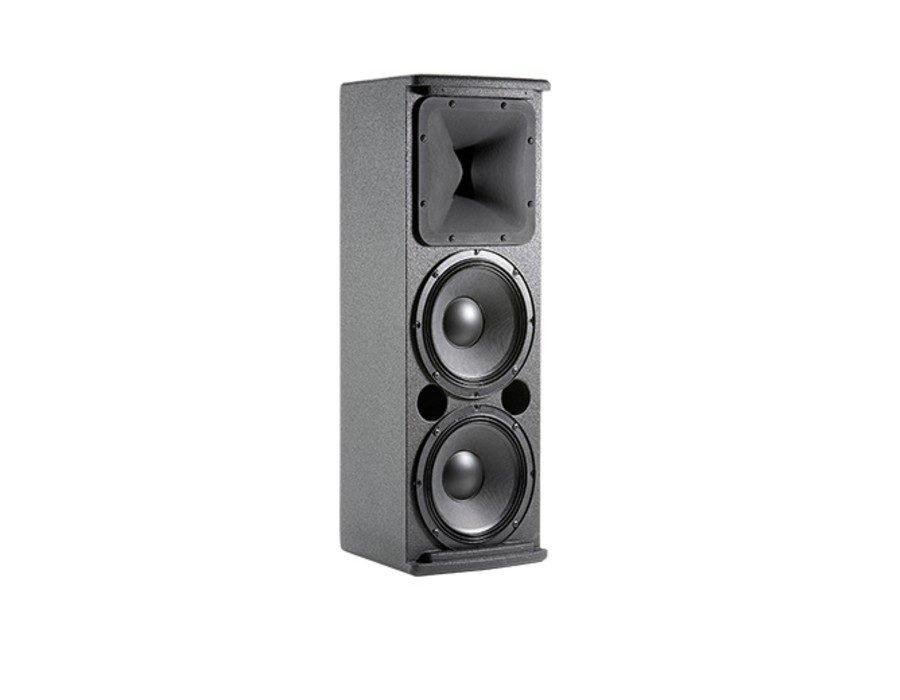

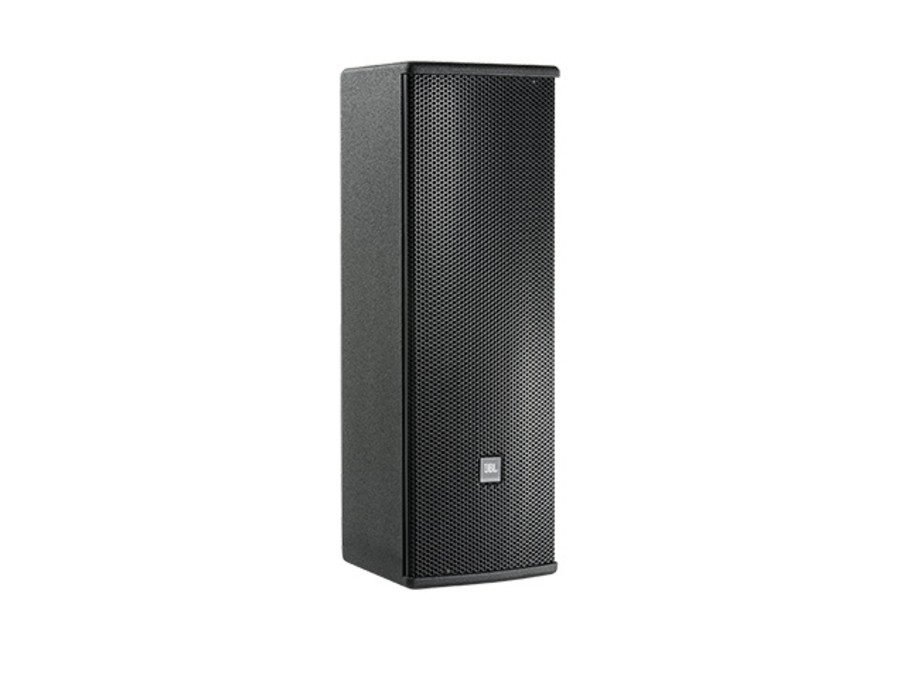

JBL AC28/26 Compact 2-way Loudspeaker with 2 x 8” LF
The AC28/26 W (White) from JBL is a 2-Way loudspeaker with dual 8″ LF drivers ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 750W of program power and has a 1″ HF driver with field rotatable 120 x 60° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC28/26 W has attachment points for the optional U-bracket or OmniMount.
SPECIFICATIONS
Frequency Range 53 Hz – 20 kHz (-10 dB)
Frequency Response 65 Hz – 20 kHz (±3 dB)
Power Rating 375W Cont. Pink Noise
750W Program
1500W Peak
750W Program
1500W Peak
Impedance 8 ohms
Coverage Pattern /26: 120° x 60°
/95: 90° x 50°
/95: 90° x 50°
Dimensions
(H X W X D) 679.5 x 237.5 x 254.0 mm
(26.8 x 9.4 x 10.0 in)
(H X W X D) 679.5 x 237.5 x 254.0 mm
(26.8 x 9.4 x 10.0 in)
Weight 18.6 kg (40.9 lb)
High output, 2-way loudspeaker systems combining flexibility with high fidelity
- 1” Exit Compression Driver with PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 750W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Features
- 1” Exit Compression Driver with PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 750W Program
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
