JBL AC28/95

Name: JBL AC28/95
SKU: 48901
Availability: BackOrder

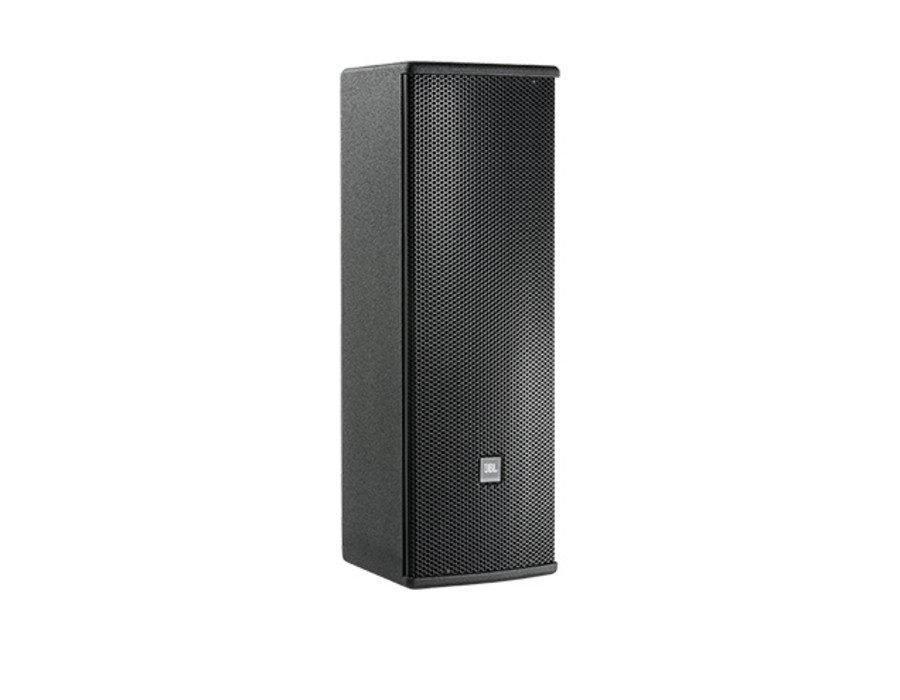

JBL AC28/95 Compact 2-way Loudspeaker with 2 x 8” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

The AC28/95 B (Black) from JBL is a 2-Way loudspeaker with dual 8″ LF drivers ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 750W of program power and has a 1″ HF driver with field rotatable 90 x 50° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/95 B has attachment points for the optional U-bracket or OmniMount.

1” Exit Compression Driver with PT™ Waveguide
205 mm (8 in) LF transducer
Compact enclosure
750W Program
Dual Neutrik NL4 connectors plus screw terminal
Attachment points for optional U-bracket, third part OmniMount^® type bracket and stand mount accessory

Frequency Range: (-10dB) 53 Hz – 20 kHz

Frequency Response: (±3 dB) 65 Hz – 20 kHz

System Power Rating: 700 W (AES rated)

375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)

Impedance: 8 ohms

Coverage Pattern: /26: 120° x 60°/95: 90° x 50°

Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)

Net Weight (each): 18.6 kg (40.9 lb)

Crossover Modes: Passive

Maximum SPL (1m): 120 dB

System Sensitivity (1w @ 1m): 94 dB SPL

LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
