JBL AC566

JBL AC566 Two-Way Full-Range Loudspeaker System with 1 x 15″ LF

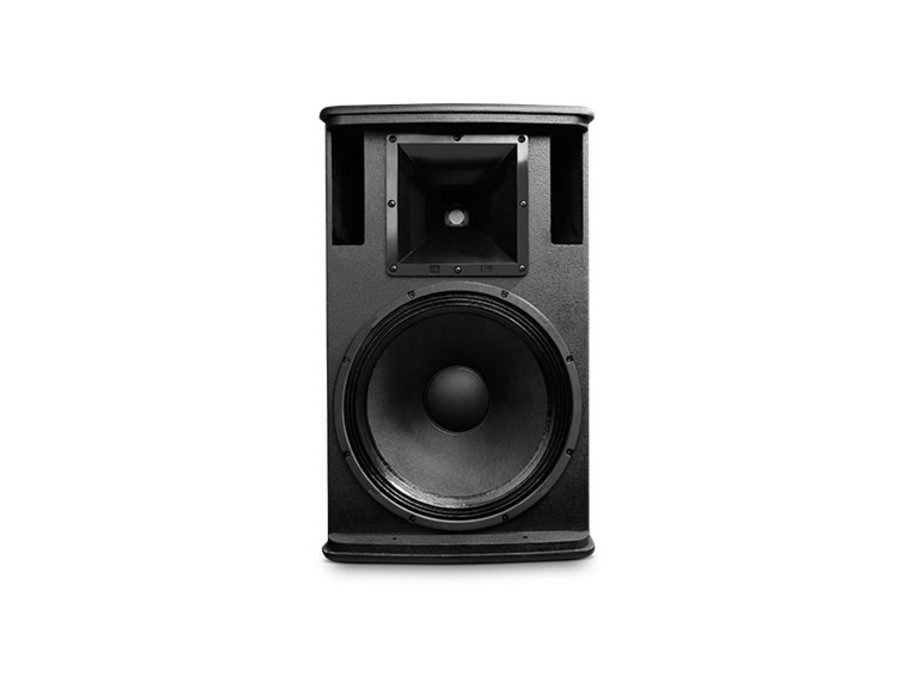

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Robust 15mm enclosure with black textured finish
384 mm (15 in) LF transducer
60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility

Features

Robust 15mm enclosure with black textured finish
384 mm (15 in) LF transducer
60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility
