JBL AC895

JBL AC895 Two-Way Full-Range Loudspeaker with 1 x 8″ LF

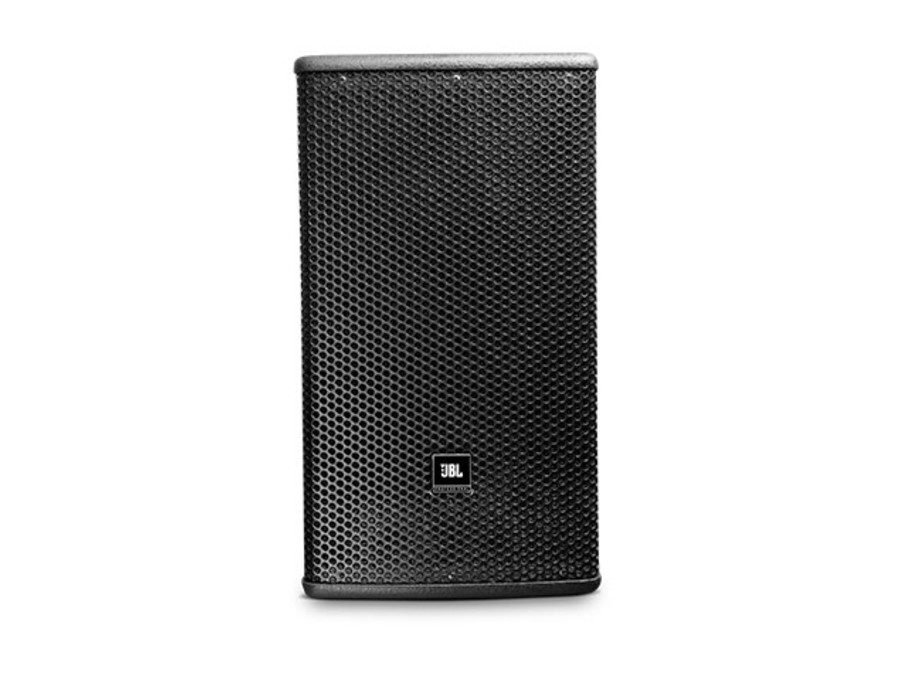

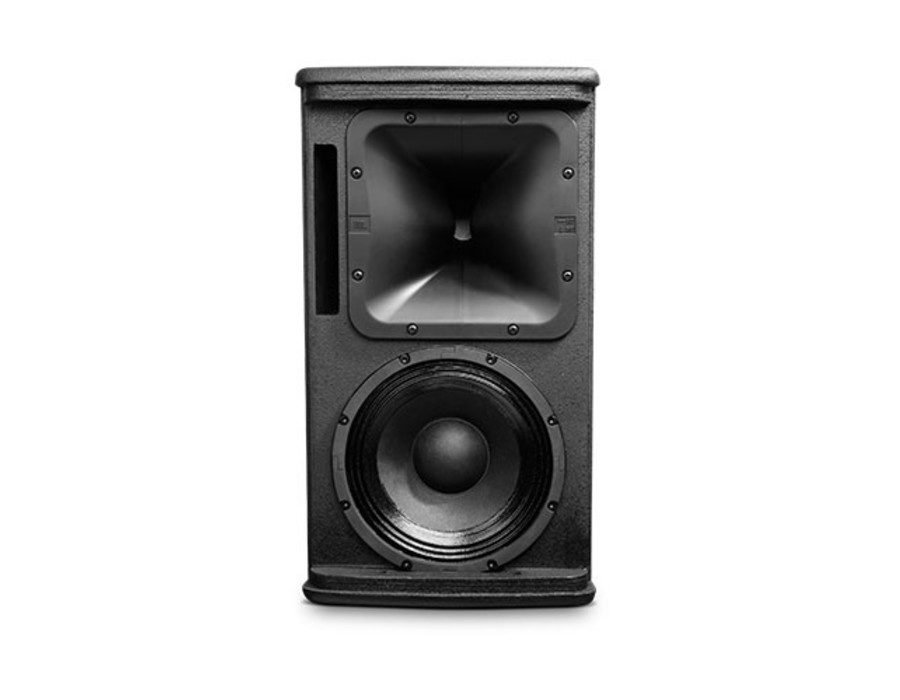

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Specifications

Frequency Range (-10dB) 70 Hz – 20 kHz

Frequency Response (±3 dB) 90 Hz – 18 kHz

System Sensitivity (1w @ 1m) 94 dB

Nominal Impedance 8 ohms

Maximum SPL (1m) 117 dB

System Power Rating 250W (1000W peak), 2 hrs (AES rated)
150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)

Coverage Pattern 90° x 50° (H x V)

Crossover 2 kHz

LF Driver 1 x 8″ woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil

HF Driver 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil

Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals

Enclosure 15 mm multi-ply hardwood plywood

Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket

Dimensions (H x W x D) 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in

Net Weight (each) 10.2 kg (22.4 lbs)

Crossover Modes Passive

Nominal LF Driver Impedance 8 ohms

Nominal HF Driver Impedance 8 ohms

Features

Compact enclosure
209 mm (8 in) LF transducer
90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1″) diaphragm compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple Attachment Points for Ultimate Flexibility

Applications

Performing Spaces
Clubs & Bars
Houses of Worship
Multi Media Spaces
Retail & Hospitality Spaces
Presentation Suites
Educational Facilities
