JBL ASB6112
Rango de precios: desde $41,499.00 hasta $84,709.00
SUBWOOFER DE PODER 12″, 1000W
PRESENTACIÓN: PIEZA
JBL ASB6112

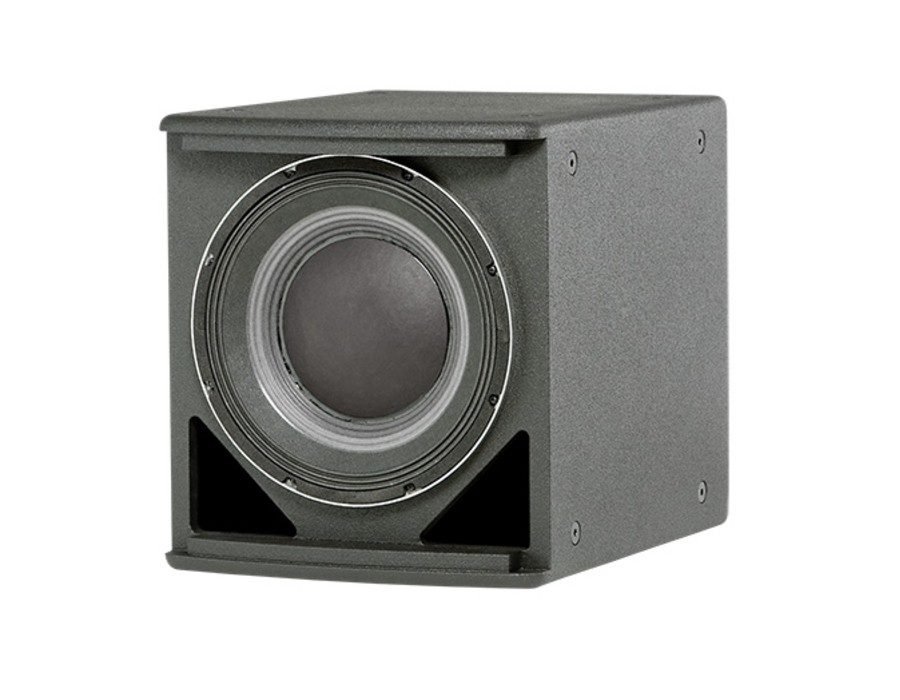

JBL ASB6112 Compact High Power Single 12″ Subwoofer
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12″ woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
FEATURES
- 2263H 12″ Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
SPECIFICATIONS
Frequency Range (-10 dB) 35 Hz – 1 kHz
Frequency Response (± 3 dB) 43 Hz – 1 kHz
Transducer Power Rating 1000 W (4000 W peak), 2 hrs.
Long-Term System
Power Rating 700 W (2800 W peak), 100 hrs.
Power Rating 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m) 40 Hz – 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 40 Hz – 300 Hz: 96 dB-SPL,
1W (2.83V) @ 1m
1W (2.83V) @ 1m
Nominal Impedance 8 ohms
Low Frequency Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish.
White available upon request.
White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in
vertical cabinet orientation) 406 x 369 x 483 mm
(16.0 x 14.5 x 19.0 in)
vertical cabinet orientation) 406 x 369 x 483 mm
(16.0 x 14.5 x 19.0 in)
Net Weight 16.3 kg (36.0 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
- 2263H 12″ Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
Más Productos JBL
| OPCIONES | ASB6112, ASB6112-WRC, ASB6112-WRX |
|---|
