JBL ASB6118

Name: JBL ASB6118
SKU: 48884
Availability: BackOrder

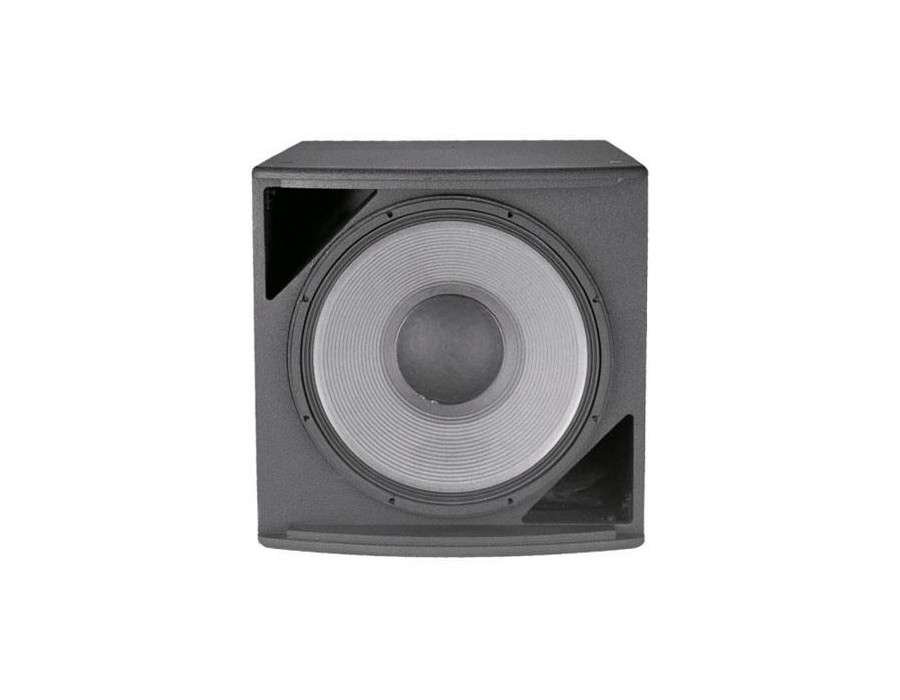

JBL ASB6118 High Power Subwoofer 1 x 18″ 2242H SVG™ Driver

The ASB6118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18″ Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5″).

SPECIFICATIONS

Frequency Range 28 Hz – 1 kHz (-10 dB)

Frequency Response 35 Hz – 1 kHz ( ± 3 dB)

Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs

Long-Term System
Power Rating (IEC) 800 W (3200 W peak), 100 hrs

Maximum SPL 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)
100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)

System Sensitivity
(dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 98 dB
100 Hz – 500 Hz: 98 dB

Nominal Impedance 8 ohms

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.
The rectangular cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. ASB6118 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

2269H 18″ Differential Drive® dual voice coil dual gap, neodymium magnet transducer
2000 watts continuous pink noise,
8000 watts peak power handling capacity
Ultra Long Excursion
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
