JBL AWC62

Name: JBL AWC62
SKU: 48902
Availability: BackOrder

JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5″ LF

The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

SPECIFICATIONS

Frequency Range (-10 dB) 70 Hz – 18 kHz

Frequency Response (±3 dB) 100 Hz – 16 kHz

Coverage Pattern 110º x 110º

Directivity Factor 7.2 (1 k – 16 kHz)

Directivity Index (DI) 7.9 dB (1 k – 16 kHz)

Long-Term System Power Rating (IEC) 175 W 2 hrs.
120 W 100 hrs

Sensitivity (2.83V @ 1m) 92 dB (Ave. 100 Hz – 18 kHz)

Maximum SPL Direct 8Ω: 114 dB (peaks of 120 dB)
120 W Tap: 112 dB

Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF

Nominal Impedance 8 ohms

Transformer Taps 70V: 120W, 60W, 30W, 15W
100V: 120W, 60W, 30W

Low Frequency Driver Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.

High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter

HF Driver Protection Minimum audibility SonicGuard™ HF overload protection

Enclosure ABS with Glass enclosure

Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”).

Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

Dimensions 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet
288 mm (11.4 in) including gland nut
309 mm (12.2 in) including bracket extending to back

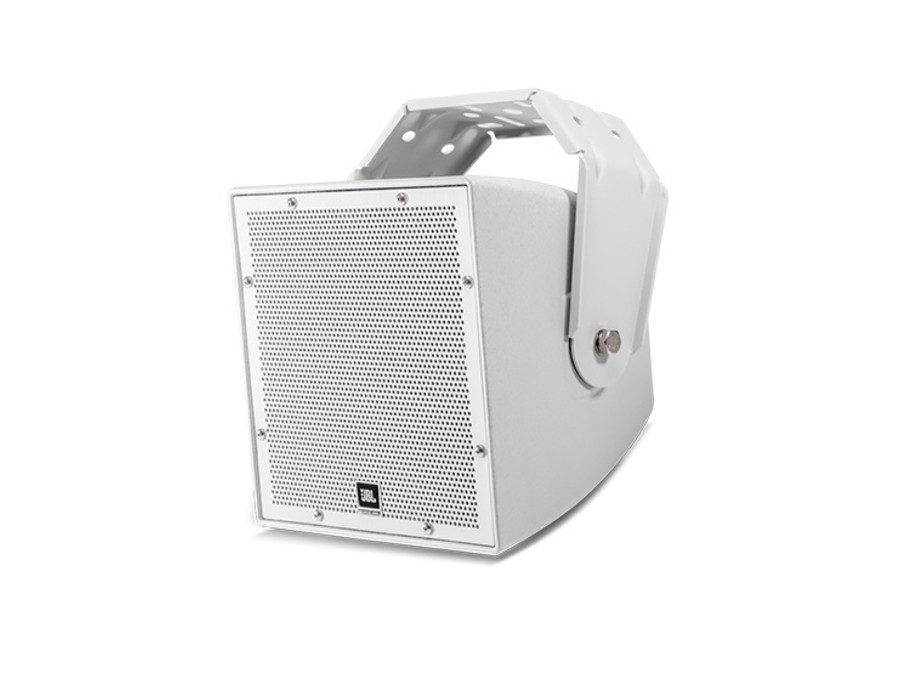

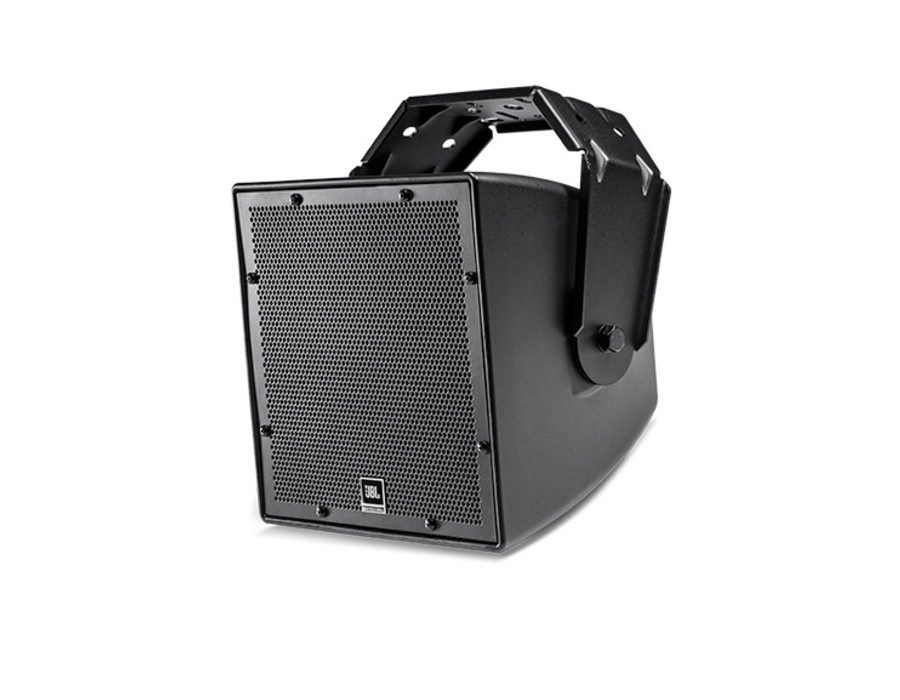

Colors Available in gray (similar to Pantone 420C) and black (-BK)

Net Weight 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket

Shipping Weight 8.8 kg (19.5 lb)

Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.

Highly weather-resistant IP56 rating.
Consistent 110° x 110° broadband pattern control.
Components:
• 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
• 25 mm (1 in) exit compression driver
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection.
70 Hz – 18 kHz frequency response.
120 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

JBL AWC62

JBL AWC62

JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5″ LF
