JBL Control 126 WT

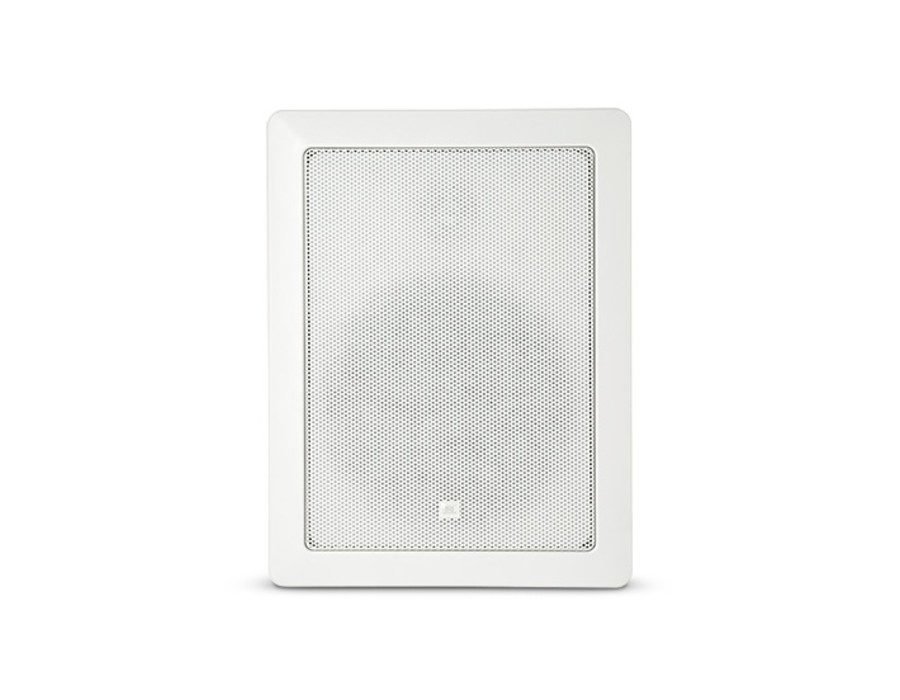

JBL Control 126 WT Premium In-Wall Loudspeaker

The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Components:

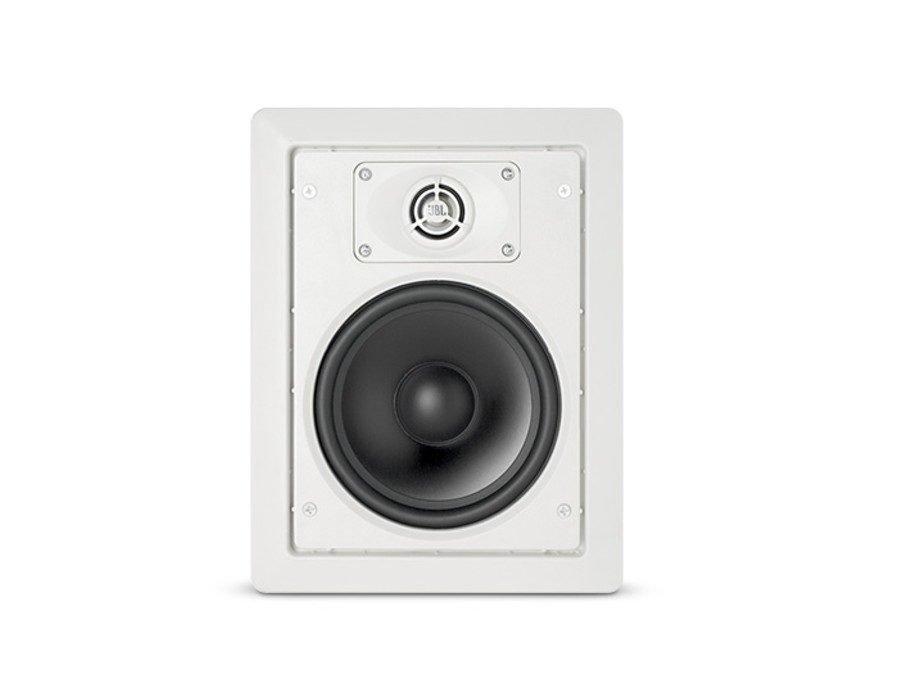

165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround. :
25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
High-slope crossover for natural midrange sound.
Extended bandwidth performance of 38 Hz – 20 kHz.
50 W continuous (100 W program, 200 W peak) power handling (126 W).

Specifications

Frequency Range 38 Hz – 20 kHz (-10 dB)

Power Rating 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise

Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps

Sensitivity 88 dB SPL

Coverage 180°H x 160°V (ave. 1 kHz – 8 kHz)

Impedance 8 ohms

Drivers LF: 165 mm (6.5 in) polymer-coated aluminum cone.
HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.

Input Connectors Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2

Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.

Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)

Outside Dimensions (H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.

Maximum Wall Thickness 2 mm (1.25 in)

Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),

Net Weight (each) 2.7 kg (5.9 lb)

Shipping Weight (ea) 6.2 kg (13.5 lb)

Included Accessories Cutout template & paint shield

Optional Accessories WB6 Rough-In Frame for newconstruction installation to wallstuds
