JBL Control 16C/T

JBL Control 16C/T Two-Way 6.5″ Coaxial Ceiling Loudspeaker

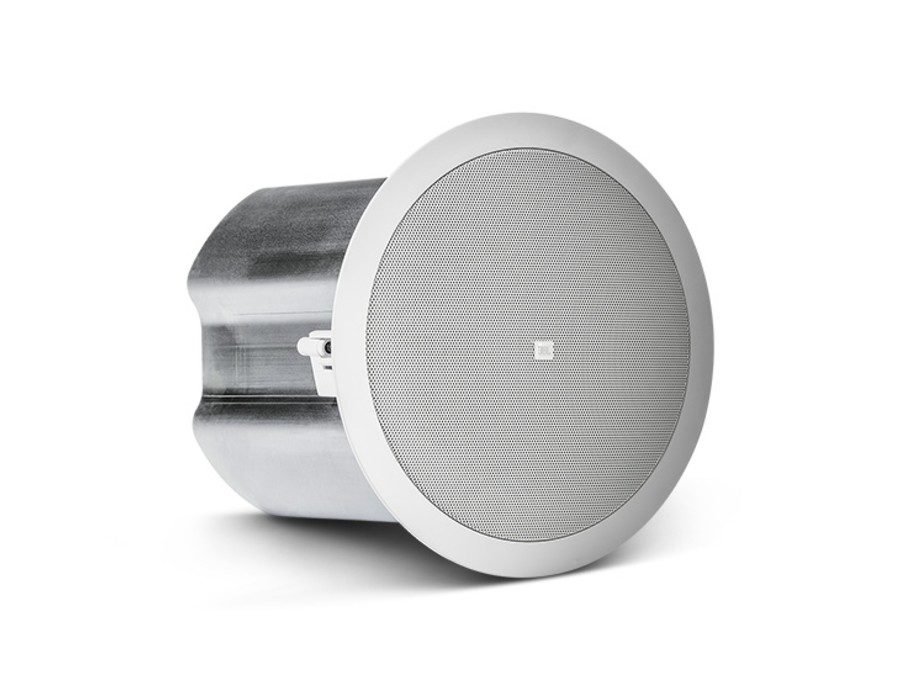

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

• Components:
  • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
  •50 Watts at 8Ω nominal setting
  • 30W multi-tap at 70V/100V
• 62 Hz – 20 kHz bandwidth with wide 110° coverage
• High 91 dB sensitivity for high maximum SPL

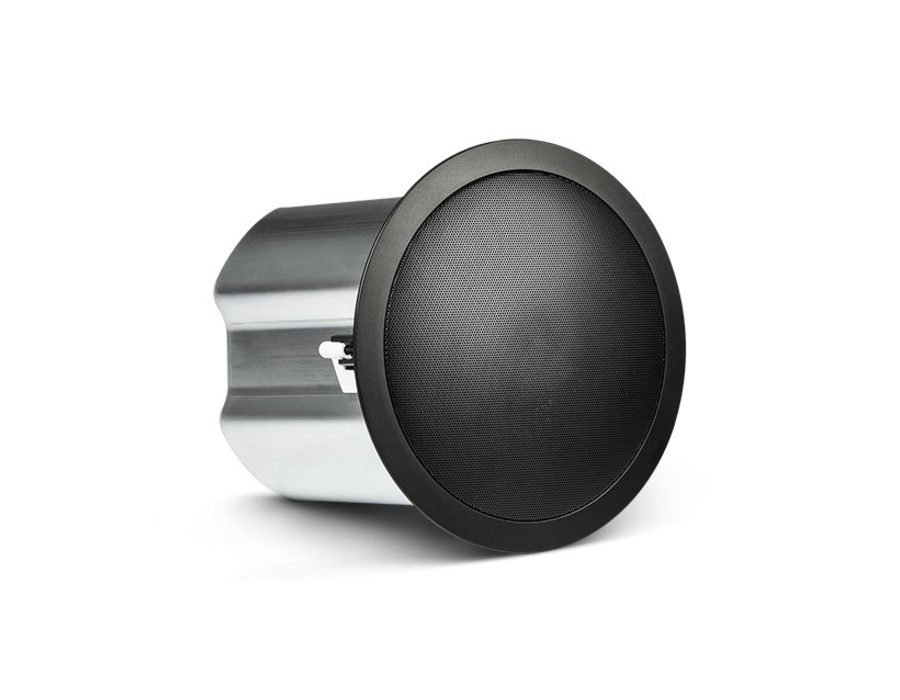

• White or black (-BK)

Specifications

Frequency Range (-10dB)  62 Hz – 20 kHz

Power Rating  IEC System Long-Term Ratings (low-Z direct):
100 Watts Continuous Program Power
50 Watts Continuous Pink Noise (200W peak), 100 hr

Transformer Taps  30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)

Frequency Response (±3 dB)  96 Hz – 15 kHz

Sensitivity  91 dB (1kHz – 16 kHz)

Coverage Angle  110° conical

Directivity Factor (Q)  7.8

Directivity Index (DI)  8.2 dB

Maximum SPL (1m)  108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100V tap)

Impedance  8 ohms (in direct/bypass setting)

Crossover Network  12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

Drivers  LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (3/4 in)

Input Connectors  Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)

Strain Reliefs  Strain relief for two cables or two flex conduits via coupled clamping mechanism
