JBL Control 226C/T

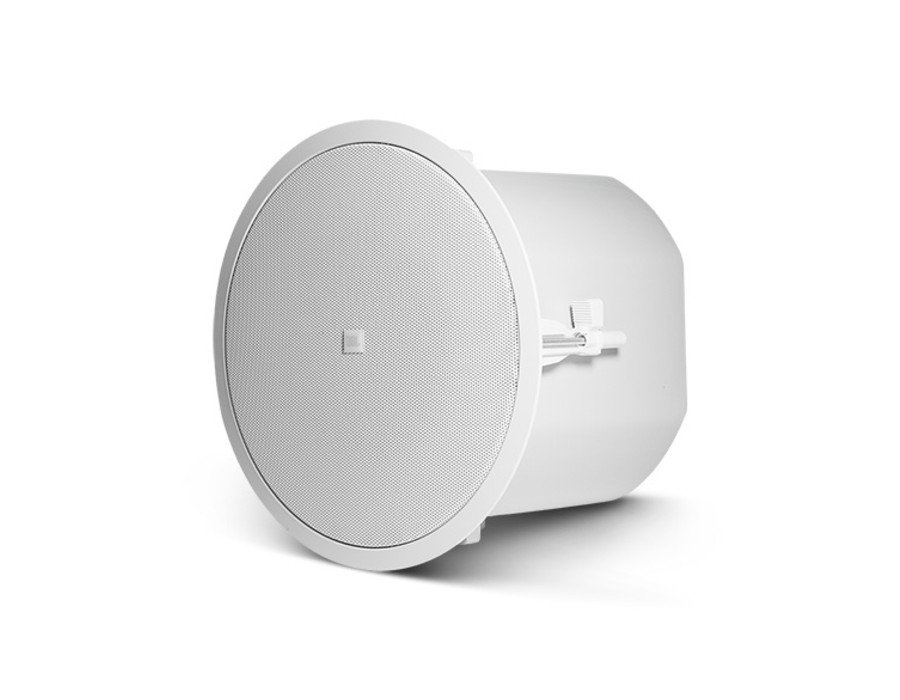

JBL Control 226C/T 6.5″ Coaxial Ceiling Loudspeaker with HF Compression Driver

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.

Consistent 120° broadband pattern control for exceptional coverage

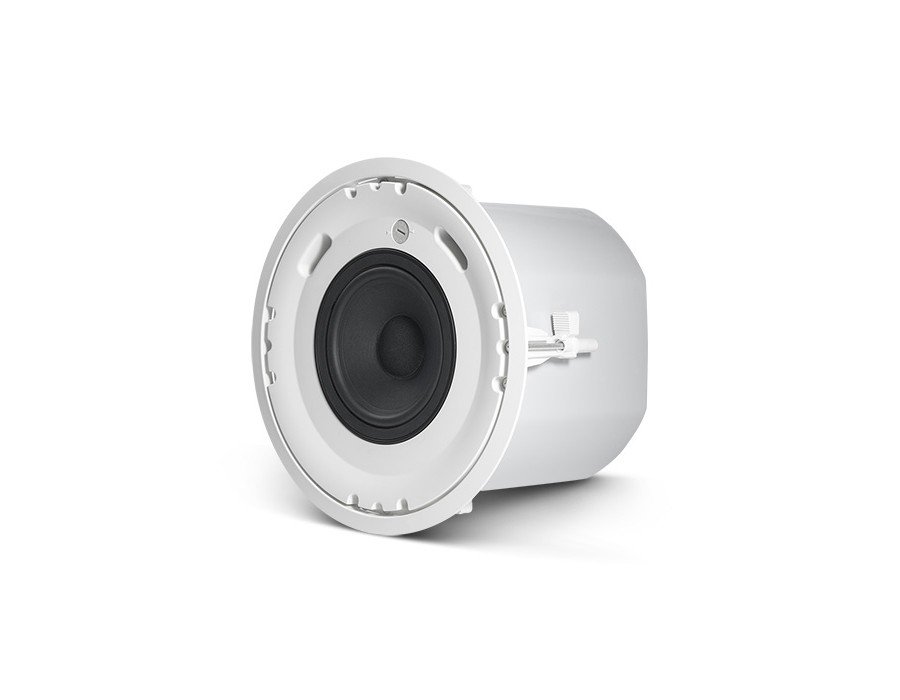

Coaxial design featuring:
Kevlar-reinforced 165 mm (6.5 in) woofer
25 mm (1 in) compression driver
Extraordinary clarity for speech and vocals with extended frequency response for music
150 Watts Power Handling
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
Integrated back can with clean, contemporary grille

Specifications

Frequency Range (-10dB) 47 Hz – 19 kHz

Power Rating IEC Long-Term System Power Rating:
150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs

Transformer Taps 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass

Sensitivity 90 dB (1 kHz – 16 kHz)

Coverage Angle 120° conical, constant directivity

Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil

Dimensions (H x Dia) Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)

Net Weight (each) 9.1 kg (20.0 lb)

Shipping Weight (pair) 23.9 kg (52.5 lb)

Maximum SPL (1m) 112 dB (low-impedance, 118 dB peak)
108 dB (top 70V/100V tap)

Impedance 8 ohms (in direct/bypass setting)

Input Connectors Removable locking connector with screw-down terminals.

Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan formed steel (included «blind-mount»)

Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.

Ceiling Cutout Size 307 mm (12.1 in) diameter (cardboard cutout template included)

Included Accessories Press-in Grille, C-Ring, Tile Rails.

Optional Accessories MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket

Plenum Usage Yes, backcan included
