JBL Control 24CT

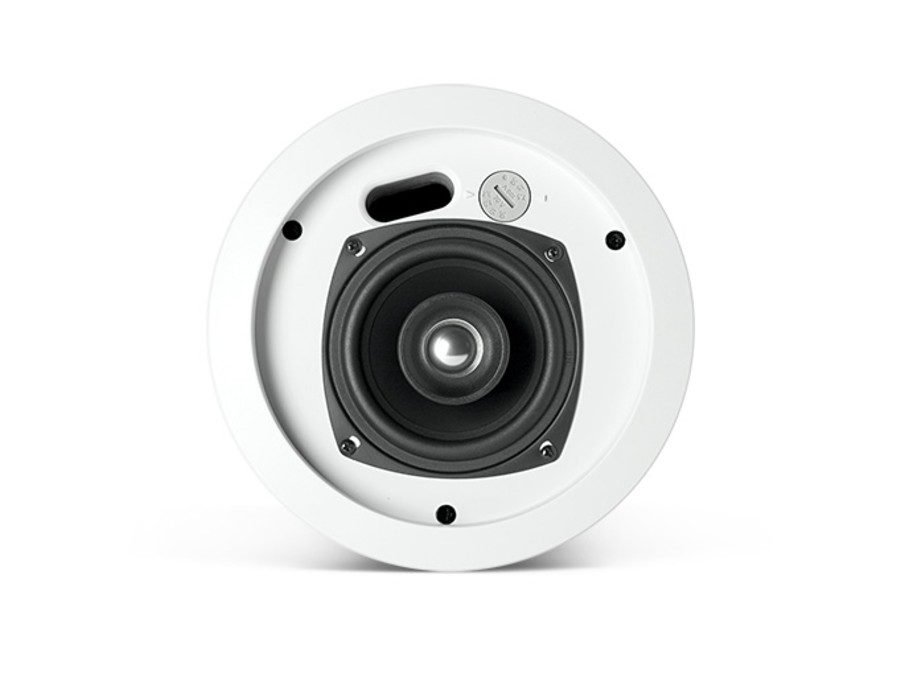

JBL Control 24CT Background/ Foreground Ceiling Loudspeakers

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

• Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
• High power, wide frequency response and low distortion for high sound level capability.
• Wide coverage allows fewer speakers, reducing the cost of
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

Frequency Range  80 Hz – 20 kHz

Power Rating  See transformer taps

Transformer Taps  70V: 30W, 15W, 7.5W (& 3.7W @ 70V)

Coverage Angle  130° conical

Directivity Factor (Q)  2.4 dB averaged 500 Hz to 4 kHz

Directivity Index (DI)  3.8 dB averaged 500 Hz to 4 kHz

Maximum SPL (1m)  102 dB (top 70V/100V tap)

Nominal Impedance  16 ohms (Min Z 16.1 ohms @ 320 Hz)

Sensitivity  86 dB (100 Hz – 10 kHz)

Input Connectors  Removable 4-pin locking connector with screw-down terminals.

Drivers  LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)

Color White

Safety Agency  Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan  formed steel (included «blind-mount»)

Baffle/Rim  Medium impact polystyrene, fire rated UL94V-0

Ceiling Cutout Size  168 mm (6.6 in) diameter (cardboard cutout template included)

Included Accessories  C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector

Plenum Usage  Yes, backcan included
