JBL Control 26-DT

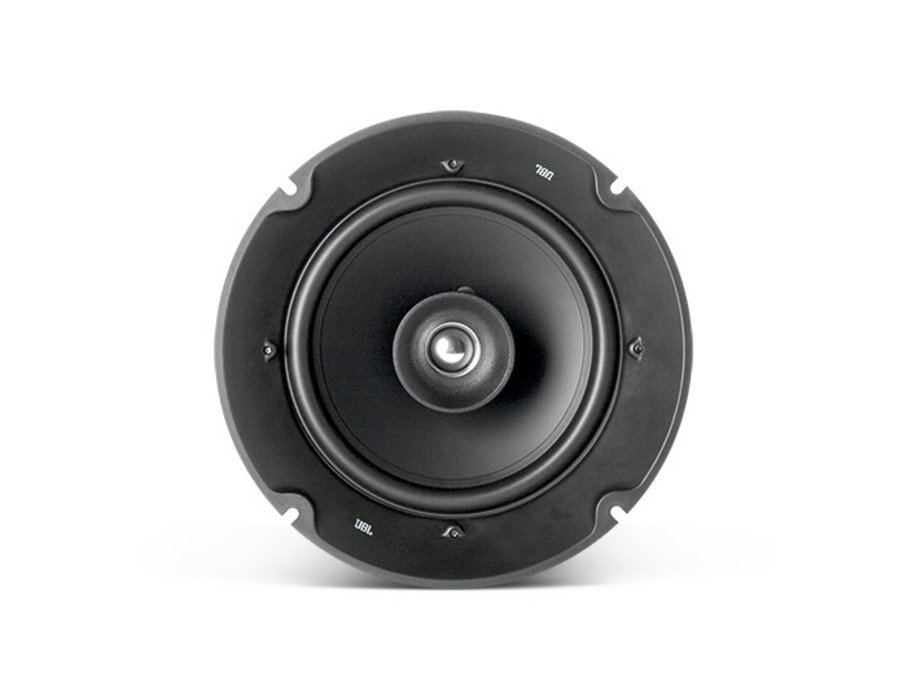

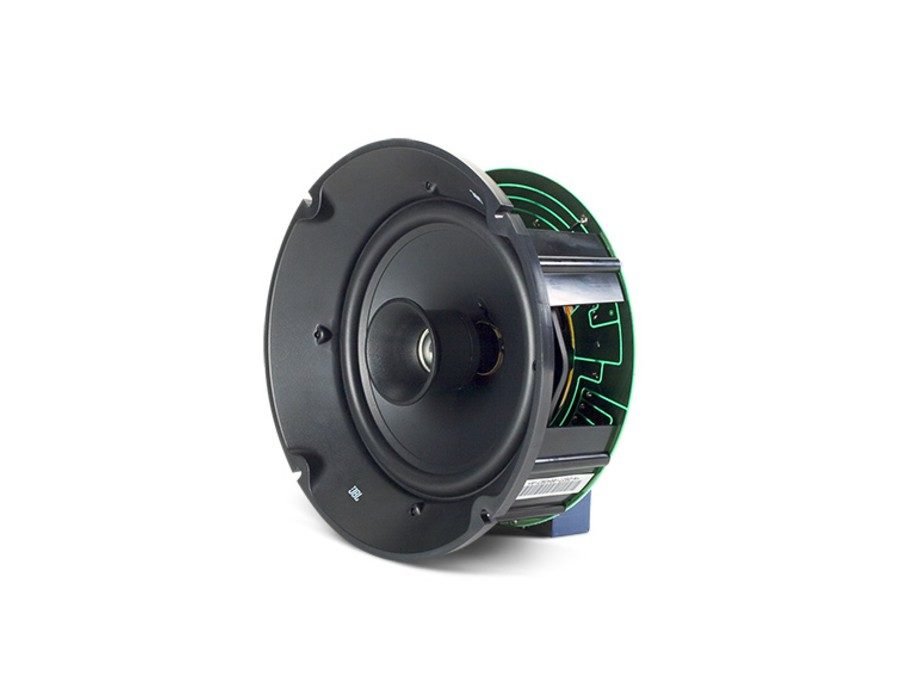

JBL Control 26-DT 6.5″ Ceiling Loudspeaker Transducer Assembly

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8″) drivers.

• Use instead of standard 8″ driver. Fits standard backcans for 8″ speakers.
• Comes complete with transducer, network and transformer.
• Advanced crossover network provides natural sound and even coverage throughout listening area.
• 60 W transformer for 70 V or 100 V distributed speaker lines.
• Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Specifications

Frequency Range  80 Hz – 20 kHz

Power Rating  See transformer taps

Transformer Taps  60W, 30W, 15W (& 7.5W @ 70V)

Coverage Angle  90° conical

Directivity Index (DI)  4.6 averaged 500 Hz to 4 kHz

Maximum SPL (1m)  106 dB (top 70V/100V tap)

Drivers  LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)

Input Connectors  Screw locking barrier strip for bare wire

Outside Dimensions (H x Dia)  210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan

Net Weight (each)  4.2 kg (10 lb)

Shipping Weight (pair)  9.7 kg (21 lb)

Sensitivity  89 dB (100 Hz – 10 kHz)

Safety Agency  In accordance with IEC60849 / EN60849.

Plenum Usage  Requires third-party plenum rated backcan
