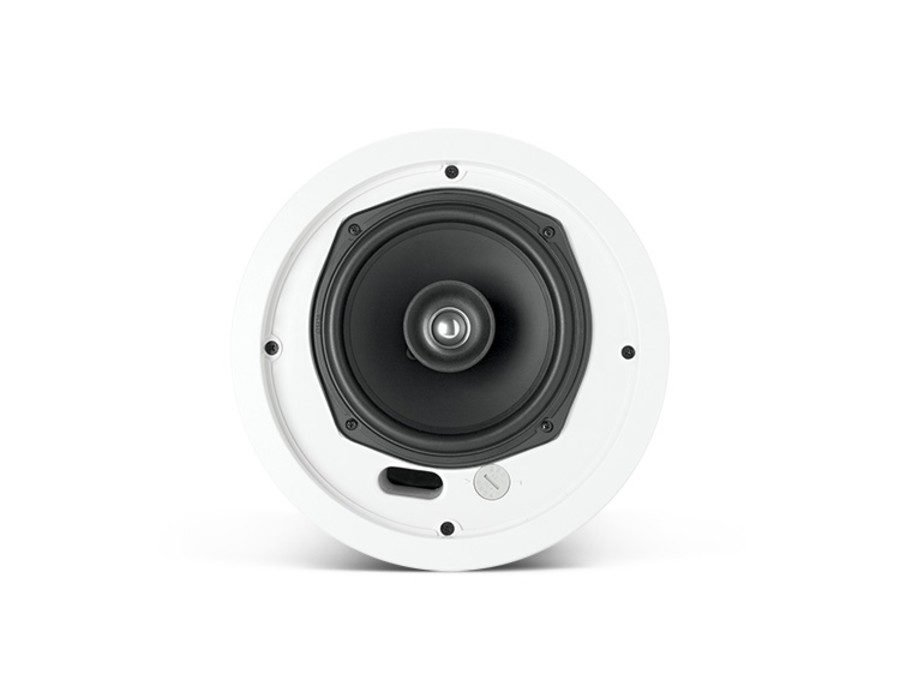

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
• High power, wide frequency response and low distortion for high sound level capability.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
  system reliability.

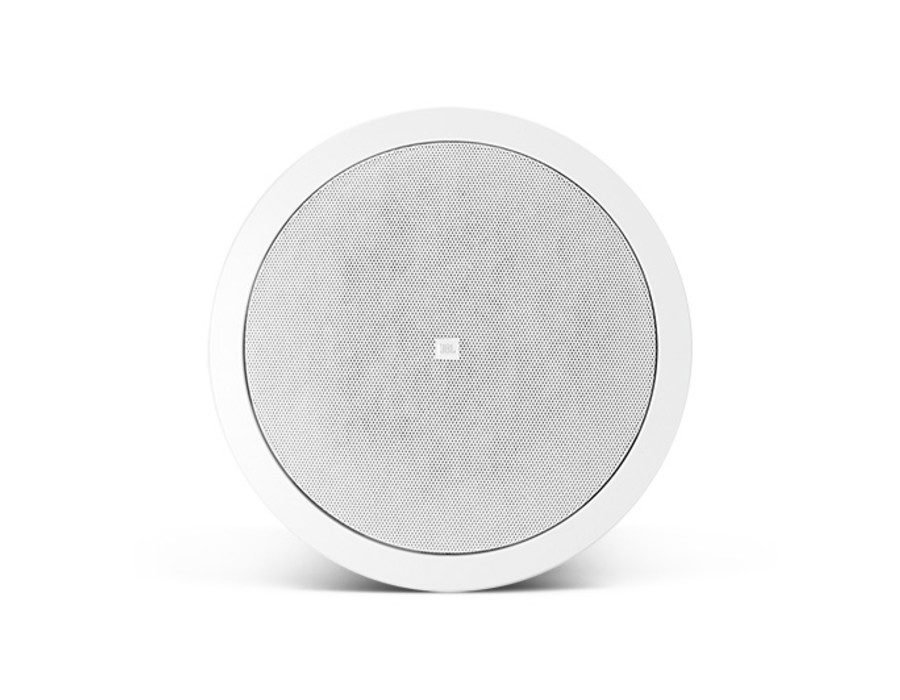

• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

Frequency Range  75 Hz – 20 kHz

Power Rating  IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (150W peak), 100 hrs

Nominal Sensitivity  89 dB, 1m/1 W

Coverage Angle  110° conical

Directivity Index (DI)  4.6 averaged 500 Hz to 4 KHz

Impedance  16 ohms

Maximum SPL (1m)  107 dB (low-impedance, 113 dB peak)

Drivers  LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)

Terminations  Removable 4-pin locking connector with screw-down terminals.

Dimensions (H x Dia)  210 mm x 252 mm (8.3 in x 9.9 in)

Net Weight (each)  2.7 kg (6 lbs)

Shipping Weight (pair)  6.4 kg (15 lbs)

Sensitivity  89 dB (100 Hz – 10 kHz)

Color  White

Safety Agency  Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan  formed steel (included «blind-mount»)

Baffle/Rim  Medium impact polystyrene, fire rated UL94V-0

Ceiling Cutout Size  220 mm (8.75 in) diameter (cardboard cutout template included)

Included Accessories  C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector

Plenum Usage  Yes, backcan included
