JBL Control 322C

JBL Control 322C 6.5″ Coaxial Ceiling Loudspeaker with HF Compression Driver For Use with Pre-Install Backcan

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Consistent 90° broadband pattern control.
Components
• Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
• Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

Specifications

Frequency Range (-10dB) 43 Hz – 19 kHz

Power Rating IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs

Sensitivity 90 dB (1 kHz – 16 kHz)

Coverage Angle 120 degrees

Frequency Response (-3 dB) 75 Hz – 17 kHz

Impedance 8 ohms

Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil

Color White

Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)

Net Weight (each) 4.1 kg (9.0 lb)

Shipping Weight (pair) 227C: 5.4 kg (12.0 lb)

Maximum SPL (1m) 112 dB (118 dB peak)

Input Connectors Screw locking barrier strip for bare wire

Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan formed steel (wood-lined; accessory)

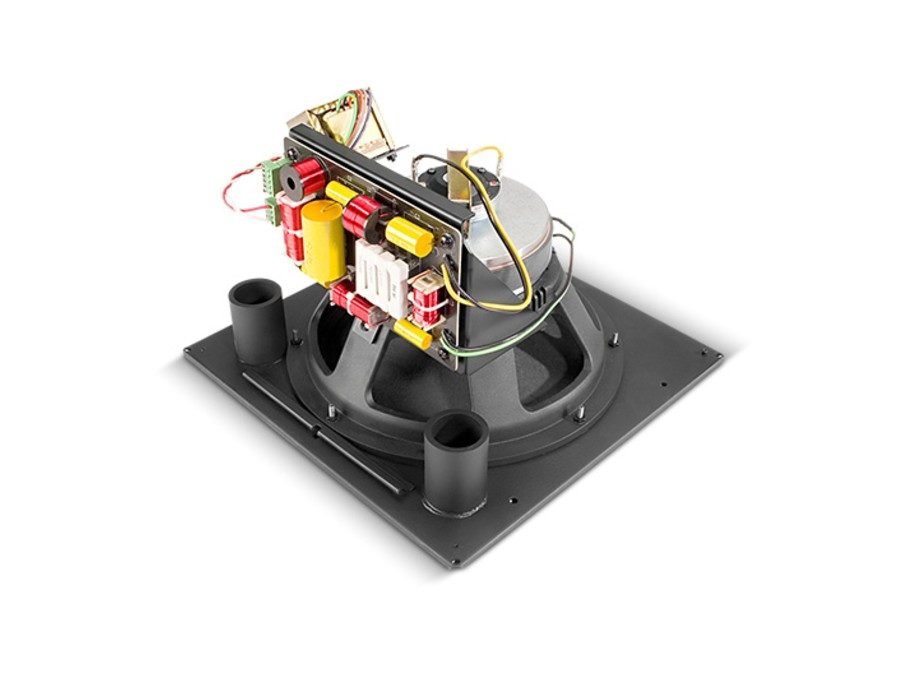

Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.

Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)

Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)

Plenum Usage Yes, with accessory backcan
