JBL Control 67P/T

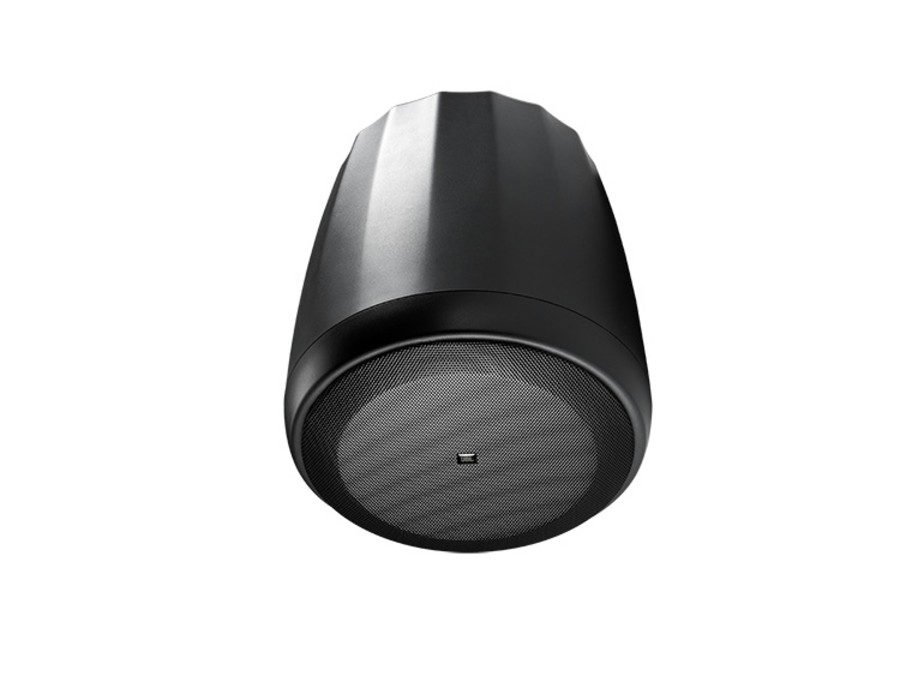

JBL Control 67P/T Extended Range Full-Range Pendant Speaker

Control 67P/T incorporates a large enclosure and high-power 6.5” (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.

RBI Radiation Boundary Integrator Technology
120° conical coverage
6.5″ (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer
Black or white

Specifications

Frequency Range (-10dB) 58 Hz – 18 kHz

Frequency Range (±3 dB) 78 Hz – 16 kHz

Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power

Nominal Sensitivity 90 dB

Coverage Angle 120° (+20°/-15°)

Directivity Factor (Q) 5.7

Directivity Index (DI) 7.5 dB

Maximum SPL (1m) 109 dB continuous pink noise, 115 dB peak

Impedance 8 ohms

Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W

Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W

Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

Enclosure High impact polystyrene

Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)

Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

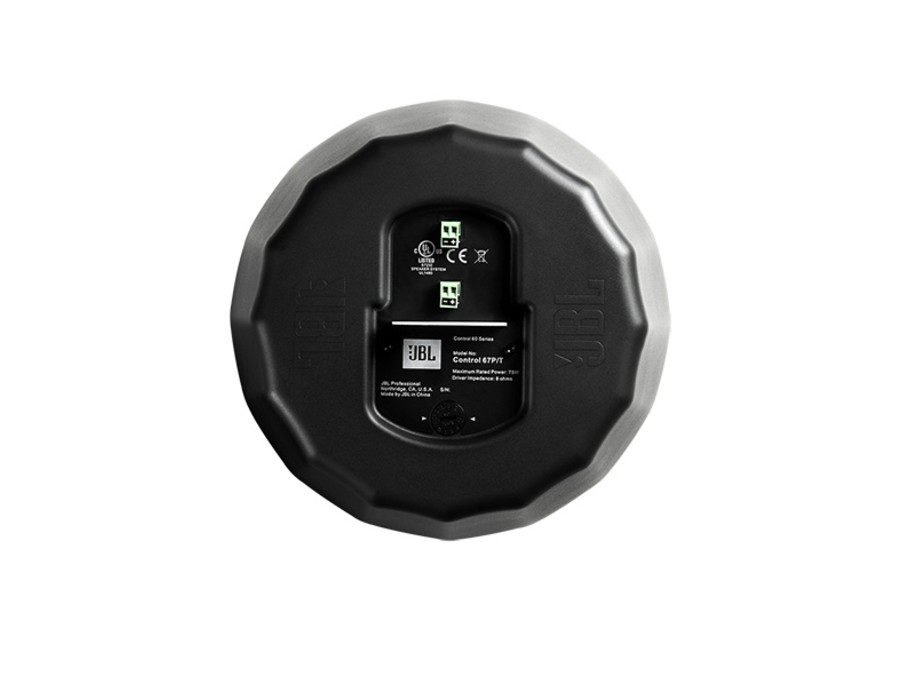

Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included

Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Dimensions (H x W x D) 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.

Net Weight (each) 5.2 kg (11.5 lbs)

Shipping Weight (pair) 12.3 kg (27 lbs)

Colors Available in black or white (-WH). Paintable.
