JBL CSS-H30

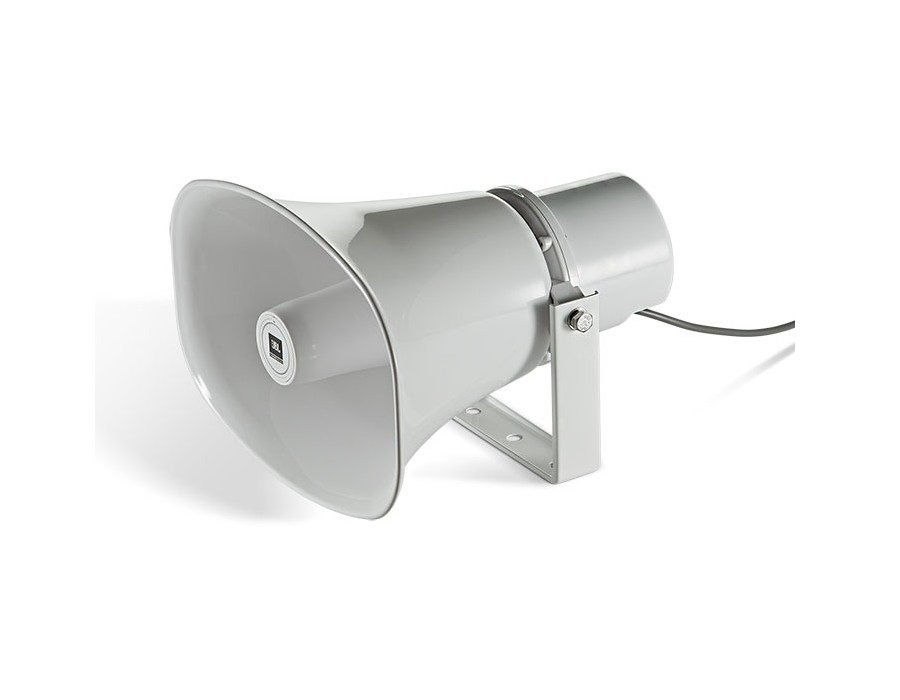

JBL CSS-H30 30 Watt Paging Horn

The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protectivesignaling systems.

• Excellent voice range clarity for announcement and paging.
• High sensitivity delivers high sound levels with minimal power amplification.
• Focused 50° horizontal by 70° vertical coverage for long throw capability.
• Phenolic diaphragm driver for outdoor durability and high reliability.

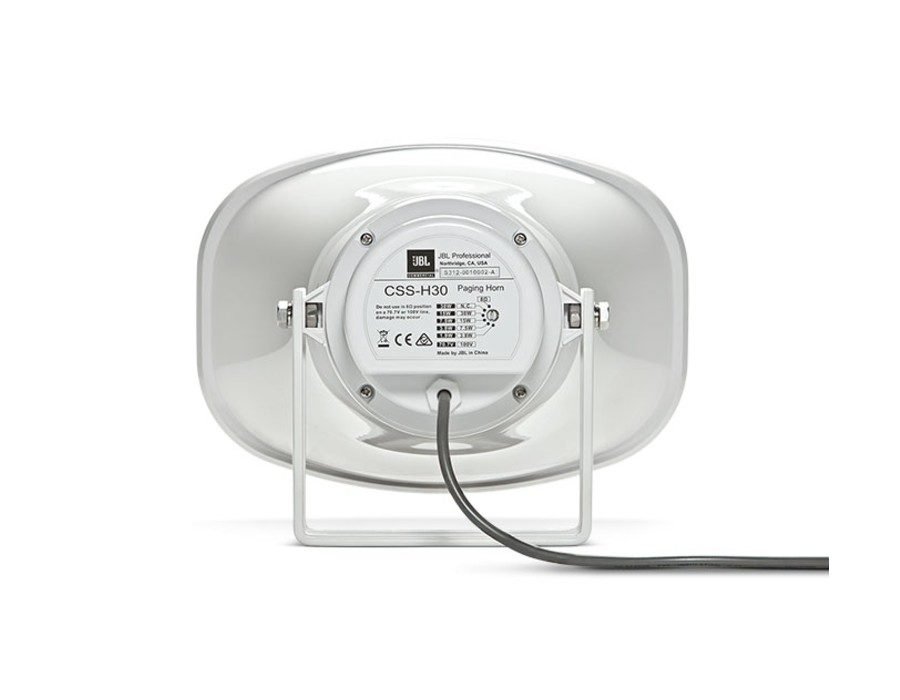

• UL-registered 30-watt multi-tap transformer, with 8 ohm direct bypass.
• Built-in high-pass filter enhances reliability by protecting against low frequency damage.
• Highly weather-resistant, with stainless steel bracket and hardware.

Specifications

Frequency Range (-10dB)  380 Hz – 6 kHz

Coverage Angle  50° horizontal by 70° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)

Included High-Pass Filter  Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.

Directivity Factor (Q)  15.8 (2 kHz)

Directivity Index (DI)  12 (2 kHz)

Power Rating  30 W (120 W peak), 100 hrs.

Sensitivity (1W, 2.83V@ 1m)  108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz

Maximum SPL (1m)  123 dB cont ave. (129 dB peak), 1 kHz – 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting

Impedance  30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting

Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W

Drivers 38 mm (1.5 in) diameter with phenolic diaphragm

Mounting Hardware  Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.
