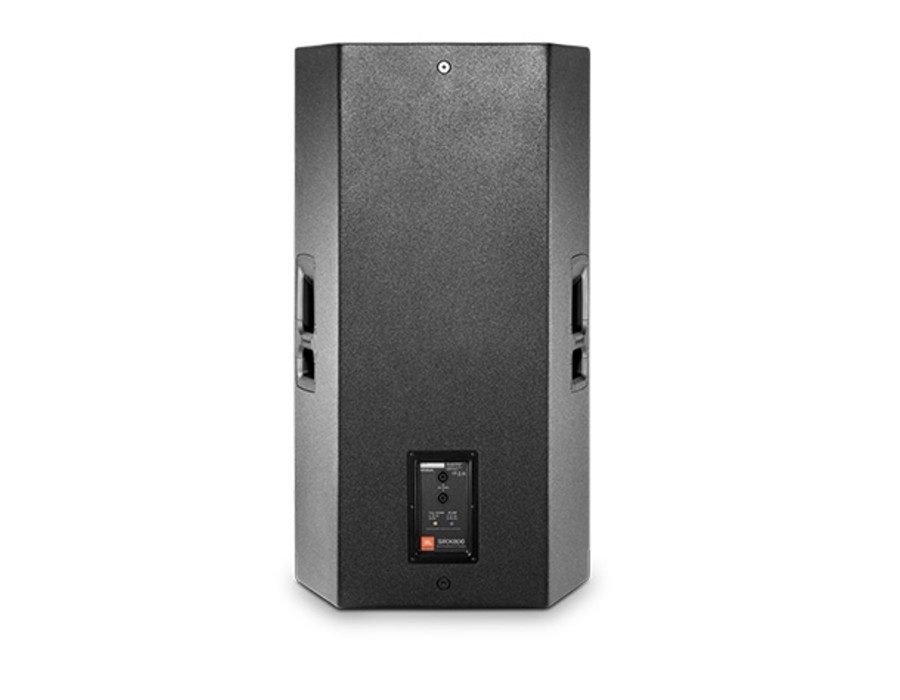

JBL SRX835
JBL SRX835 15″ Three-Way Bass Reflex Passive System
- Premium JBL Transducers
- Rugged, versatile enclosures
- Tunings available for Crown amps and dbx signal processors
- Fully supported in Audio Architect
- Power Handling: 3200W Peak, 1600W Program, 800W Continuous
- Frequency Range: 32Hz-20kHz
- Frequency Response: 43Hz-20kHz
- Max SPL: 130dB (Peak)
- Coverage Pattern: 60×40
- Amplification options: Passive/Bi-Amp
Applications
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
Specifications
System Type Passive 15”, three-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 32hz – 20khz
Frequency Response (-3 dB) 43Hz – 20Hz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275F
MF Driver 2107H
HF Driver 2432H
Coverage Pattern 60 x 40
Crossover Frequency 330hz & 2.4khz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Weight 95.0 lbs (43.1kg)
