JBL VRX932LA-1

JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12″ two-way line array speaker system designed for use in arrays of up to six units.

JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand.
Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
Array Configuration Selector permits “array shading” in passive mode.

Specifications

Power Rating 800 W / 1600 W / 3200 W

Frequency Range (-10dB) 57 Hz – 20 kHz

Dimensions (H x W x D) 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)

Frequency Response (±3 dB) 75 Hz – 20 Hz

Coverage Pattern 100 x 15 nominal

Crossover Modes Bi-amp / passive, externally switchable

Crossover Frequency 132 dB SPL peak 1.2 kHz

Maximum SPL (1m) 130 dB SPL peak (passive mode)
LF: 130 dB HF: 139 dB

Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL

LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.

HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver

Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 8 ohm

Active Tunings Tunings available at www.jblpro.com

Enclosure 18 mm, 11-ply birch plywood

Suspension / Mounting Optional VRX932LA-AF line array frame kit

Finish Black DuraFlex™ finish

Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam

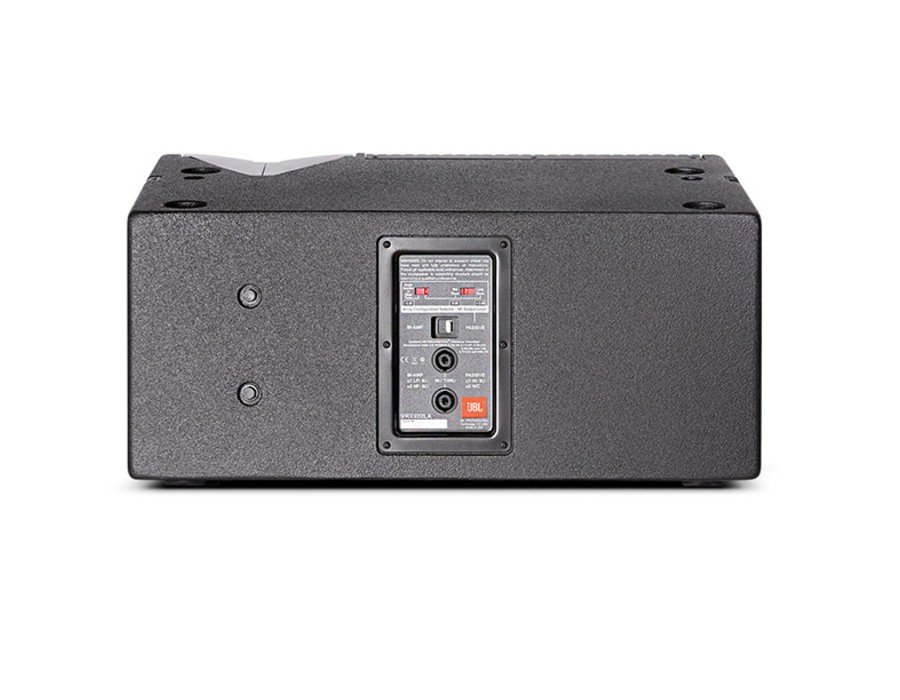

Inputs Neutrik® Speakon® NL-4 (x2)

Net Weight (each) 21 kg (46 lb)

Optional Accessories VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only

Outputs 1 x XLR

System Type Constant Curvature 12″ Two-Way Line Array System
