High-efficiency 1600W Class-D amplifier offers ample headroom for professional applications

• Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
• Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications

Advanced Impulse™ DSP module

• Precision crossovers and transducer time-alignment deliver reference quality sound that is consistent throughout the frequency range
• Cutting-edge FIR Filtering technology drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal clear sound

DRM Control Dashboard™ features a high-contrast full color display for easy single-knob access to configuration, processing, and more

• View current EQ and voicing mode, high-resolution metering, and more from a single overview window
• Application and venue specific modes provide easy to use voicing with minimal setup time. Available modes: Live, Monitor, Club, and Speech plus independent Sub option w/variable crossover
• Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
• Alignment Delay control for delay stacks
• Save and recall up to 6 user presets for various applications and venues
• Screensaver plus dimmer and contrast control
• System lock with 4-digit passcode

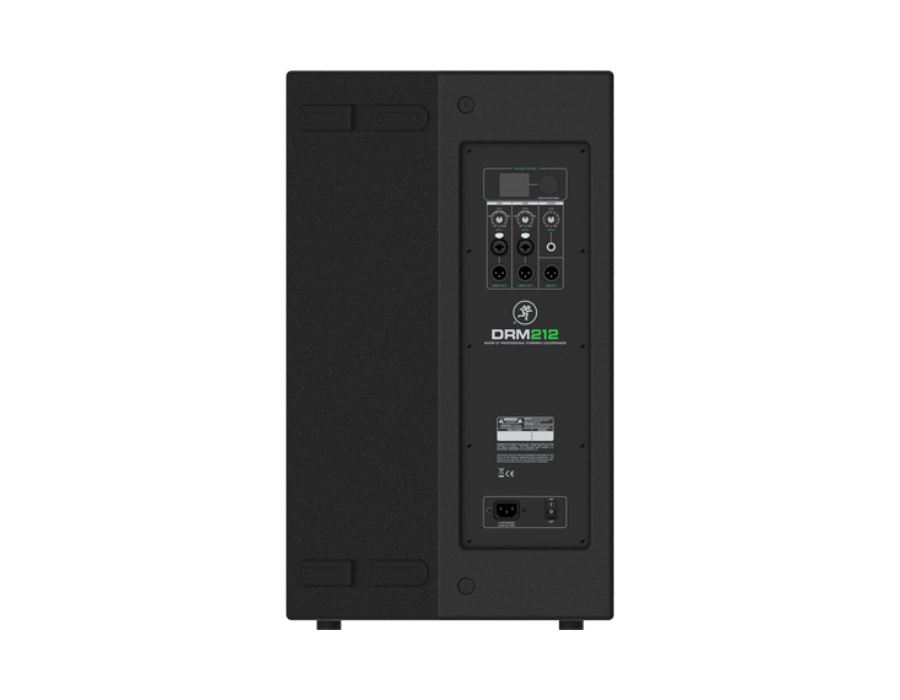

Dual independent inputs that support mic, line, and instrument signals plus a dedicated 1/8” stereo aux input

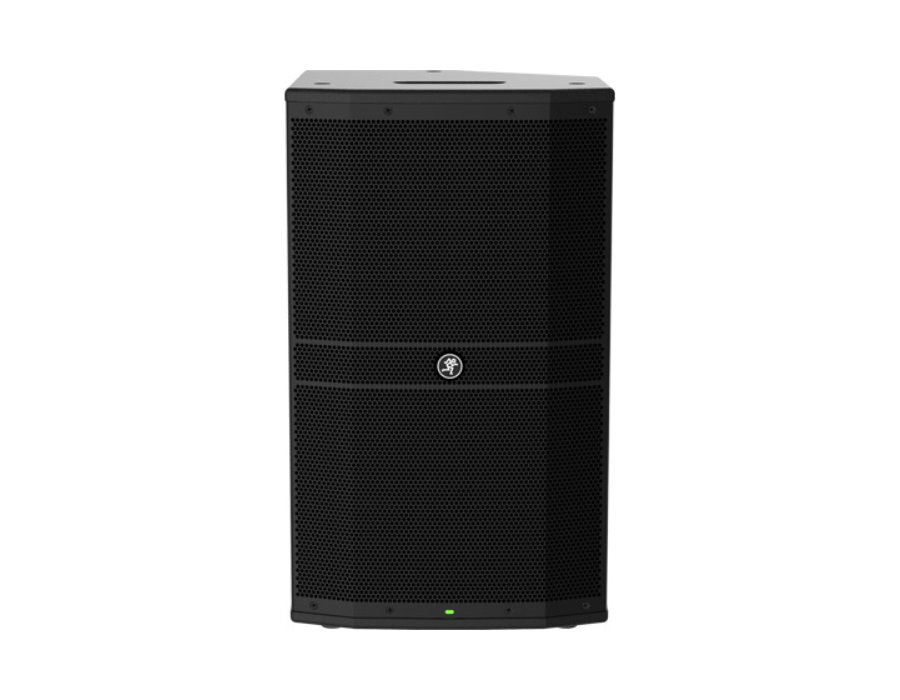

Premium components and cabinet design

• Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance with a touring-grade textured coating and powder-coated heavy gauge steel grille
• Unique ported design provides exceptionally smooth yet punchy low frequency response while providing forced-air cooling directly to the internal amplifier
• 1.4” Titanium diaphragm compression driver is perfectly matched to the amplifier for maximum clarity and efficiency
• 12” High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications

Versatile configuration options

• Angled cabinet design allows for use as a high-performance floor monitor
• Dual angle pole-mount provides optimal coverage and minimal reflections in most venues
• Flyable – 8xM10 flypoints for vertical orientation
• Max SPL: 134 dB
• 42.0 lb / 19 kg
