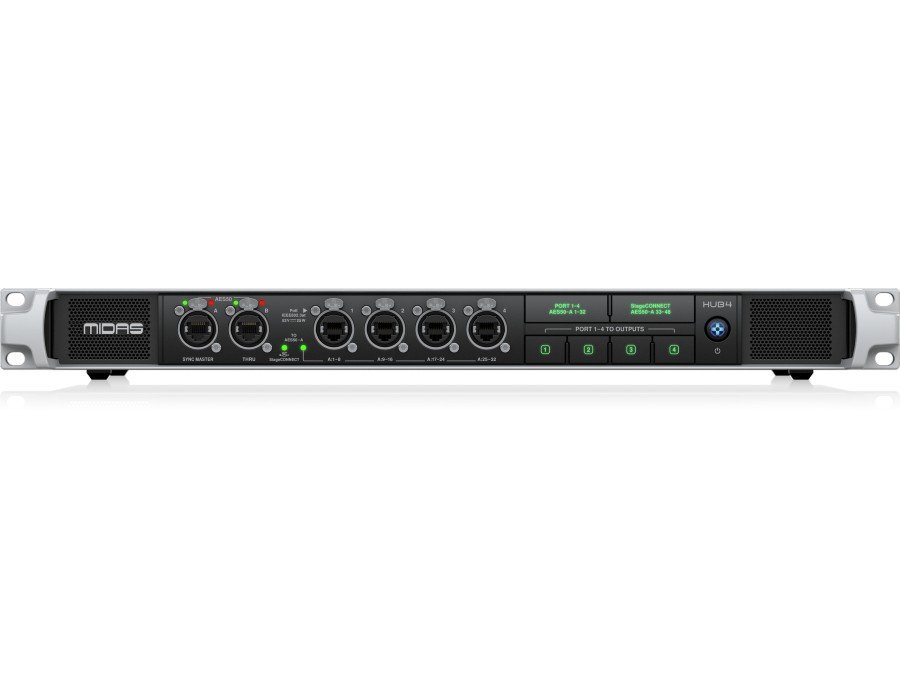

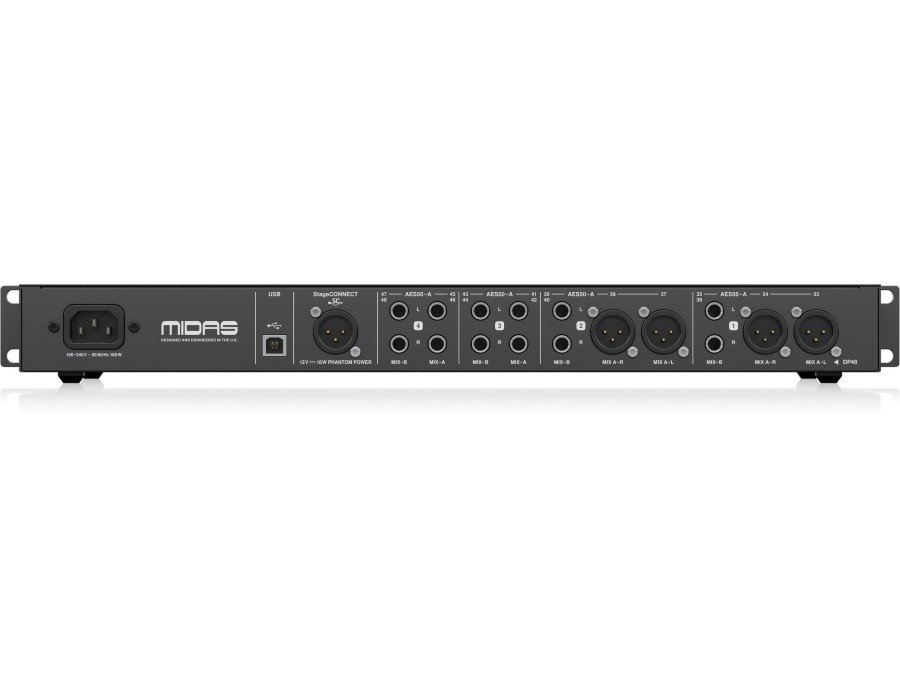

Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio. HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.

To meet the challenges of large monitoring setups, HUB4 can easily be daisy-chained to make additional DP48 ports available, all the way up to symphonic orchestra applications.

On the other hand, HUB4 can also address situations where you want to connect additional I/O via the same AES50 link to the mixing console. To help build out this AES50 console link, digital stage boxes such as the Midas DL16 or DL32 can be connected to the HUB4’s AES50-B (THRU) Port. The console can pass downstream signals to their respective stage outputs, while also receiving 48 channels upstream from the stage inputs via HUB4.
