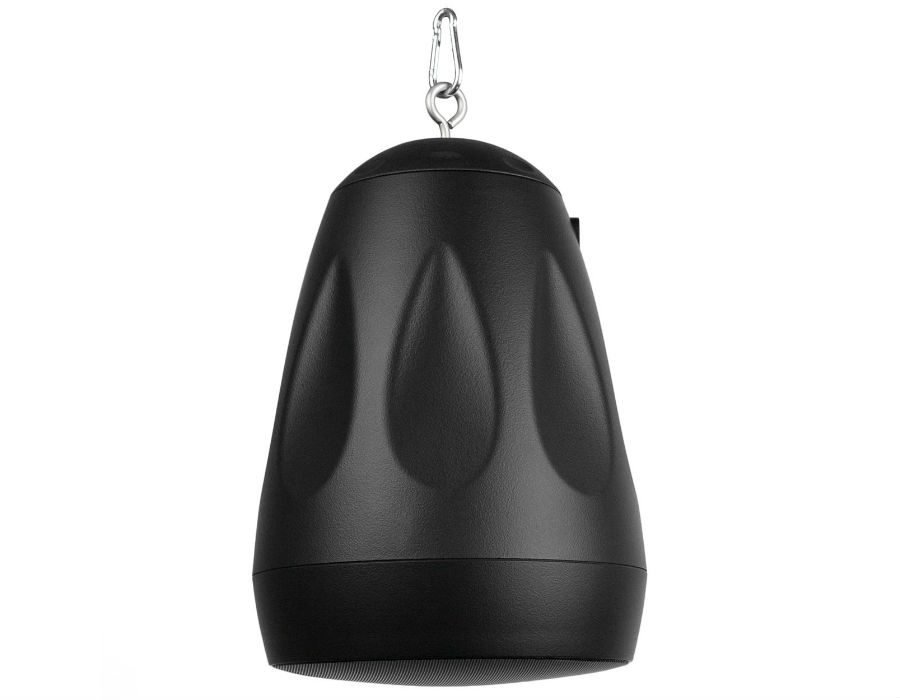

Pure Resonance Audio PD6
Designed to meet the needs of indoor and outdoor open-ceiling commercial applications, the Pure Resonance Audio PD6 6.5″ full-range pendant speaker is weather-resistant, high powered and easy to install. This 70-volt pendant mount loudspeaker is perfect for restaurants, retail stores, offices, warehouses, or any other open-architecture high ceiling environment where paging, announcements or foreground and background music is required.
Clear and Intelligible Wide-Coverage Audio for Focused Performance
Designed to meet the needs of open-ceiling commercial applications, the Pure Resonance Audio PD6 full-range coaxial pendant mount loudspeaker is easy to install and high powered producing clear intelligible audio in spaces with exposed structure open-architecture ceilings. The acoustically matched 6.5″ and 1″ tweeter maximize the PD6’s performance while minimizing its overall footprint. The down-firing design of the driver directs the high fidelity sound for an evenly distributed 150° wide coverage pattern. A tough weather-resistant construction with treated drivers and two-layer, powder-coated grilles bring high-performance audio and vocal clarity to both indoor and outdoor pendant-mount sound systems.
Ideal 70V Loudspeaker Solution Built for Integration in Open-Ceiling Commercial Environments
With the addition of a 4-pin Euroblock plug and multi-tap transformer for use with 70V/100V distributed audio loudspeaker systems, the Pure Resonance Audio PD6 is easily integrated into any commercial audio application. The 2-way pendant-mount loudspeaker provides superb sound reproduction for exposed structure or open plenum ceiling venues where a stylish contemporary speaker blends well with the architectural design. This 70-volt pendant speaker is the perfect installed sound solution for restaurants, retail stores, open office floor plans, hotels, warehouses, big box stores, fitness centers, convention centers, conference rooms, atriums, museums, theme parks, casinos, airports or any other high ceiling environment where paging, announcements, or foreground and background sound reinforcement is required.
Fast, Easy and Versatile Installation to Meet the Demands of Any Application
The Pure Resonance Audio PD6 is well-equipped for an easy and secure standard pendant-mount installation with the included mounting hardware. The steel hanging and safety cables, carabiner and Fastlink locking wire joiner ensure a safe and reliable installment. With the optional surface-mount and ground stake accessories kit (sold separately), the crisp sounding PD6 commercial speaker can adapt to meet the demands of any application. Simply screw on the surface mounting bracket and it’s ready to install onto any wall or ceiling. To utilize it as a landscape speaker, attach the ground stake to the same surface-mounting bracket and then the stake to the in-ground stabilizing plate.
Power Handling: 30 Watts RMS; 70 Watts Peak
Frequency Response (±3 dB): 95Hz – 20KHz
Frequency Response (±10 dB): 65 Hz – 20 kHz
Sensitivity: 87dB 1m/1w
Impedance: 8 ohm
Peak Output: 103dB
Woofer: 6.5 inch Polypropylene
Tweeter: 1 inch Black silk
Transformer: 70.7V: 4W / 8W / 16W / 32W / 8 ohm
100V: 8W / 16W / 32W / 8 ohm
Connections: Four-pin Euroblock
Grill: Baked black aluminum
