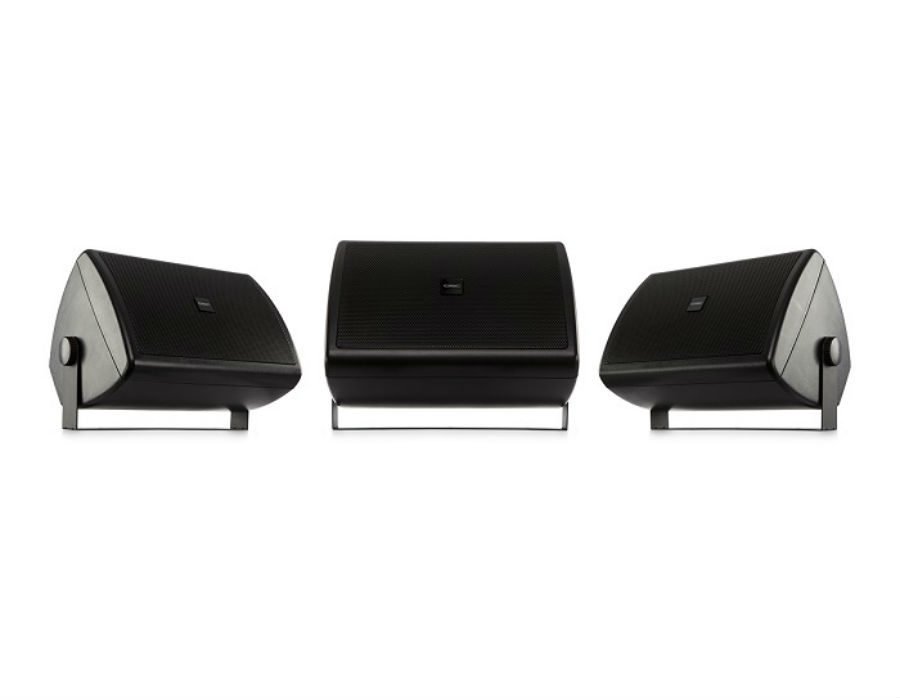

QSC AC-S6T

QSC AC-S6T 6.5-inch 2-way, 130° conical

High quality transducers provide exceptional clarity through the critical voice range.

Improved musicality often not seen in typical BGM class products.

Ported baffle for increased low frequency extension down to 70 Hz.

Low saturation 70/100V transformers with 8 ohm bypass.

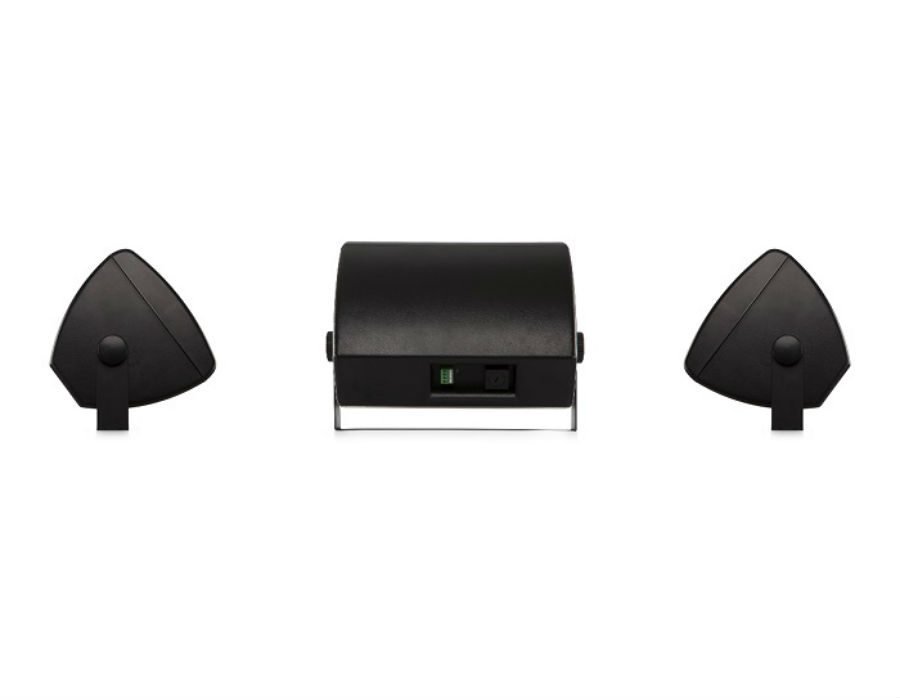

4-pole Euroblock connector eases system wiring.

Advanced voicing via QSC Intrinsic Correction™, applied using Q-SYS processing or CXD amplifier platforms.

Available in black (RAL 9011) or white (RAL 9010).

Complete EASE, CAD & BIM information available online.

Specifications	AC-S6T
Effective frequency range¹	60 Hz–20 kHz
Rated noise power / voltage²	30 watts / 15.5 volts rms
Broad-band sensitivity³	86 dB SPL
Coverage angle (-6 dB)	130° conical (500 Hz–5 kHz)
Directivity factor (Q)	6
Directivity Index	8 dB
Maximum continuous SPL⁴	101 dB
Maximum peak SPL⁴	107 dB
Rated impedance	8 ohms
Recommended amplifier power	60 watts into 8 ohms
Transformer taps	70V: 30, 15, 7.5, 3.7, 1.9 watts 100V: 30, 15, 7.5, 3.8 watts 8 ohm bypass
LF transducer	165 mm (6.5-inch) Polypropylene woofer with 25 mm (1-inch) voice coil
HF transducer	25 mm (1-inch) Aluminium dome tweeter with 25 mm (1-inch) voice coil
Input connector type	Euroblock connector with parallel output
Enclosure material	UV treated, high impact ABS polymer
Grille material	Powder coated steel
Yoke material	Powder coated steel with brass inserts
Enclosure Details Ingress protection Operating environment Operating Temperature Range	IP-44 Designed for indoor use -20 to 50° C (-4 to 122° F)
Product Dimensions (HWD) inches	11.9 x 8.5 x 7.8
Product Dimensions (HWD) mm	303 × 215 × 197
Net Weight	8.3 lb / 3.8 kg
Shipping weight	8.4 kg (18.6 lb) pair packed
Shipping Dimensions (HWD) inches	14.1 × 10.5 × 18.5 pair packed
Shipping Dimensions (HWD) mm	359 x 267 x 470 pair packed
Included accessories	Yoke mount system, euroblock connector
¹ Free-field, -10 dB from on-axis sensitivity ² IEC60268-1 noise signal for 2 hours ³ On-Axis, free-field sensitivity, 2.83V, 1 m ⁴ Calculated from rated noise voltage and sensitivity

Color	Black, White
