QSC AD-C. SAT
BOCINA SATELITE PARA MONTAJE EN TECHO DE 7.75 PULGADAS DE PEQUEÑO FORMATO
PRESENTACIÓN: PAR
QSC AD-C.SAT

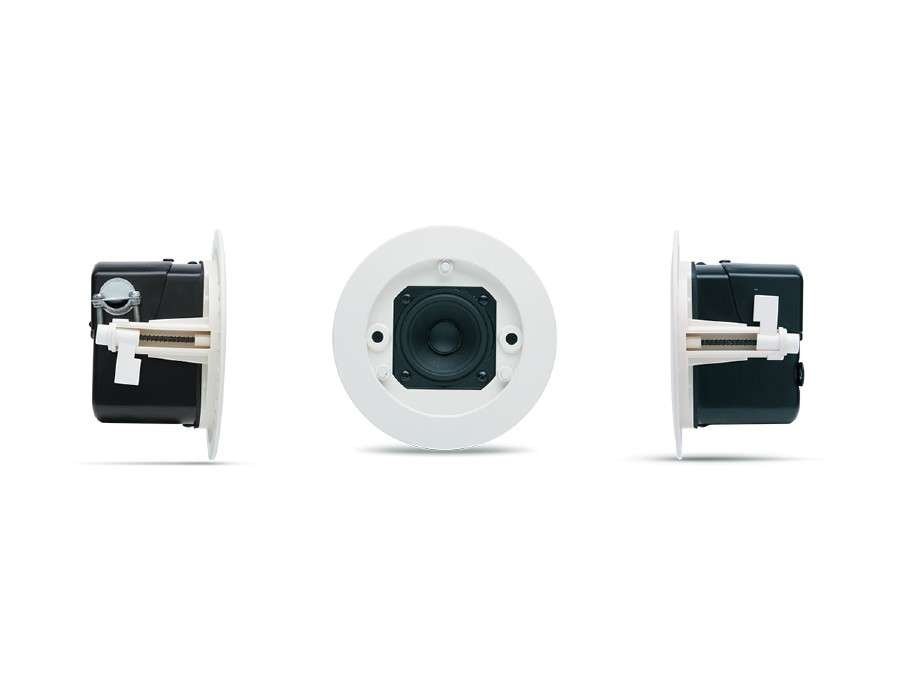

QSC AD-C. SAT 2.75-inch Small Format Ceiling Satellite Loudspeaker
The AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features
- Inverted aluminum dome dust cap
- Rated at 16 Ω
- Locking 2-pole Euroblock connectors
- Snap-fit magnetic grills
- Removable conduit cover plate
- 2x long travel dog-ear blind mount system
- Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 and UL2043 certified
| Specifications | AD-C.SAT |
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz – 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) | 82 |
| Coverage (‐6 dB) | 170° Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (continuous / peak) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer taps / impedance | Bypass: 16 Ω |
| Connector | 2-pole Euroblock connectors |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Cutout dimension | Ø 4.5-inch (Ø 115 mm) |
| Net weight | 1.39 lb (630 g) |
| Product dimensions (Ø x H) | Ø 5.9 x 3.4-inch (Ø 150 x 86 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D) | TBD (pair packed) |
| Included accessories | C-ring, Euroblock connector, cut-out template, grill (pair packed) |
| Safety agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
Más productos QSC
| Color | Black, White |
|---|
