QSC AD-C6T-HC

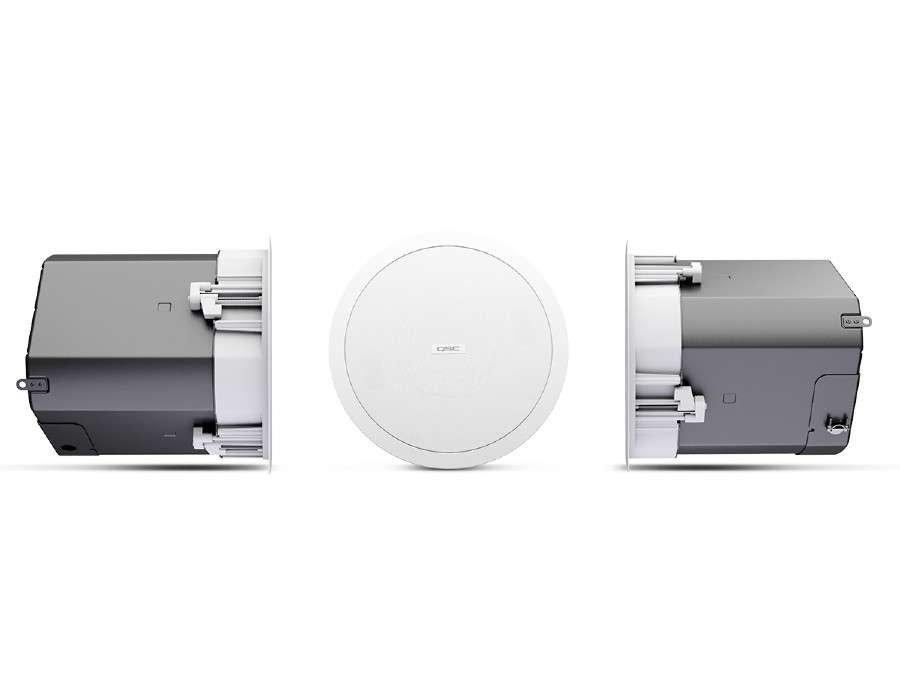

QSC AD-C6T-HC 6.5-inch, 2-way ceiling-mount loudspeaker, 75° coverage

Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™
16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
75° coverage pattern
Available in white (RAL 9010)

SPECIFICATIONS	AD-C6T-HC
Description	6.5 in, two-way ceiling-mount loudspeaker with transformer
Transducers	6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter
Sensitivity	90 dB @ 1 W, 1 m
Freq. range (-10 dB)	45 Hz – 20 kHz
Rated noise power (@16 Ω bypass)	120 W
Coverage (-6 dB)	75°
Directivity factor	10
Directivity index	10 dB
Max SPL (continuous/peak)	110 dB / 116 dB @ 1 m
Taps (70 V/ 100 V)	7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
Bypass impedance	16 Ω
Min impedance	14.97 Ω @ 208 Hz
Crossover frequency	2.5 kHz
Input	4-pin Euroblock connector with parallel output
Net weight	19 lb (8.58 kg)
Product dimensions	12 x 13.4 x 13.4 in (313 x 340 x 340 mm)
Optional accessories	AD-MR8 (pre-install mud ring)
