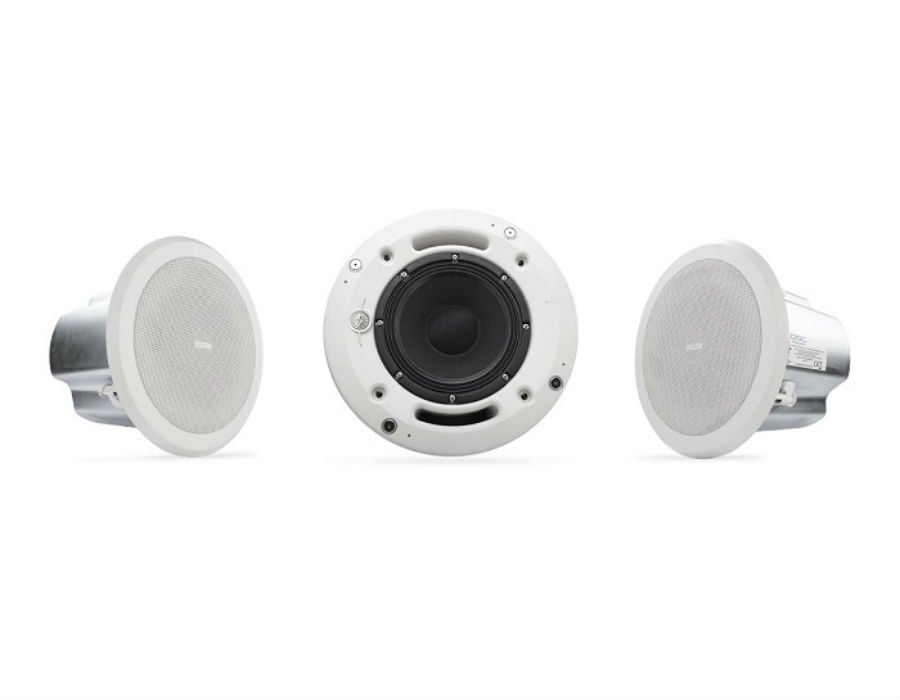

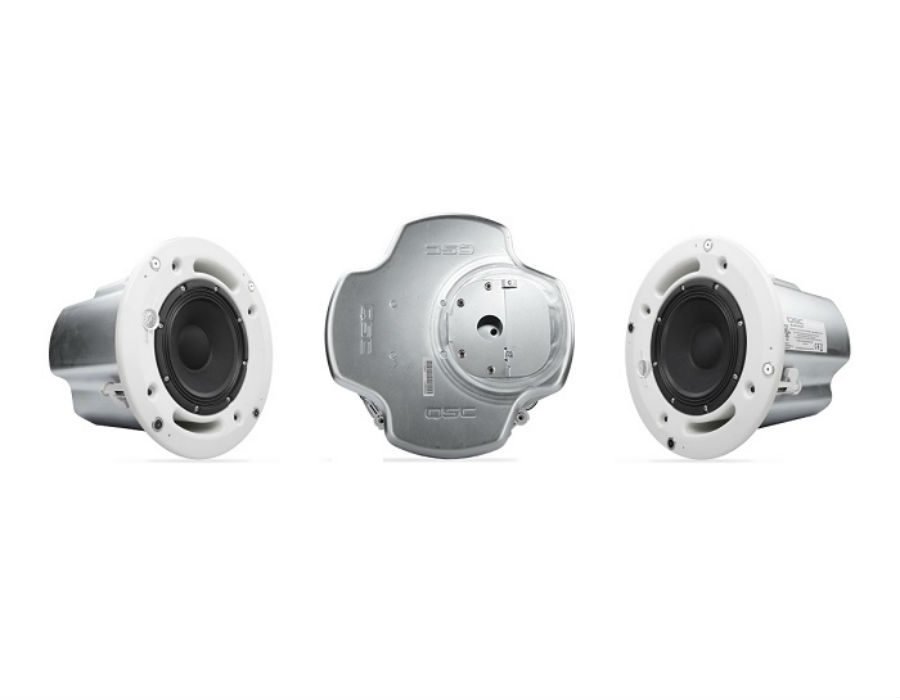

QSC AD-C821R SYSTEM

QSC AD-C821R SYSTEM 8-inch 2-way, 90° conical DMT™

8″ low-frequency woofer

1.4″ diaphragm compression driver

200 watt continuous power rating

70V/100V multi-tap transformer included (system can operate in distributed or low-impedance mode)

AD-C821 designed as a fully integrated blind-mount system

AD-C821 is sold in the following system packages:

AD-C821R SYSTEM

AD-C821 blind-mount loudspeaker system

Split ring and tile rails

AD-C800RG Round grille (white, paintable)

AD-C821S SYSTEM

AD-C821 blind-mount loudspeaker system

Split ring and tile rails

AD-C800SG Square grille (white, paintable)

SPECIFICATIONS	AD-C821
Configuration	Passive
Low-frequency Transducer	8-inch (203 mm) ferrite woofer
Hight-frequency Transducer	1.4-inch (36 mm) neodymium compression driver
Frequency Range ¹ Frequency Response (-6 dB) Useable Frequency Range (-10 dB)	61 Hz to 18 kHz 52 Hz to 18 kHz
Maximum Output ² Calculated Peak Output Calculated Continuous Output	120 dB SPL 114 dB SPL
Nominal Coverage	90° conical DMT™
Nominal Impedance	16 ohms
Power Rating Continuous power handling³ Recommended amplifier power (loudspeaker «program» power)	200 W 400 W
Sensitivity	91 dB SPL, 1W/1m
Bass Loading	Ported
Transformer Type	Custom low distortion laminated core, wide bandwidth design
Transformer Taps	100 V: 16 ohms bypass, 100 W, 50 W, 25 W 70 V: 16 ohms bypass, 100 W, 50 W, 25 W, 12.5 W
Agency Rating	CE, UL 1480 (commercial/professional use) UL 2043 (air handling spaces)
ENCLOSURE
Enclosure Volume	18 liter (0.64 ft³)
Connectors	Two 2-pin Euro-style connectors
Mounting Hardware	Captive, integral Mounting Clamps. Insert enclosure into mounting hole, and tighten. Suspended ceiling Split-ring and Suspended Ceiling Tile Rails – sold separately.
Weight – Net	16 lb (7.3 kg)
Dimensions	Diameter: 13.4-inch (340 mm) Depth: 11.9-inch (302 mm)
