QSC AP-5152

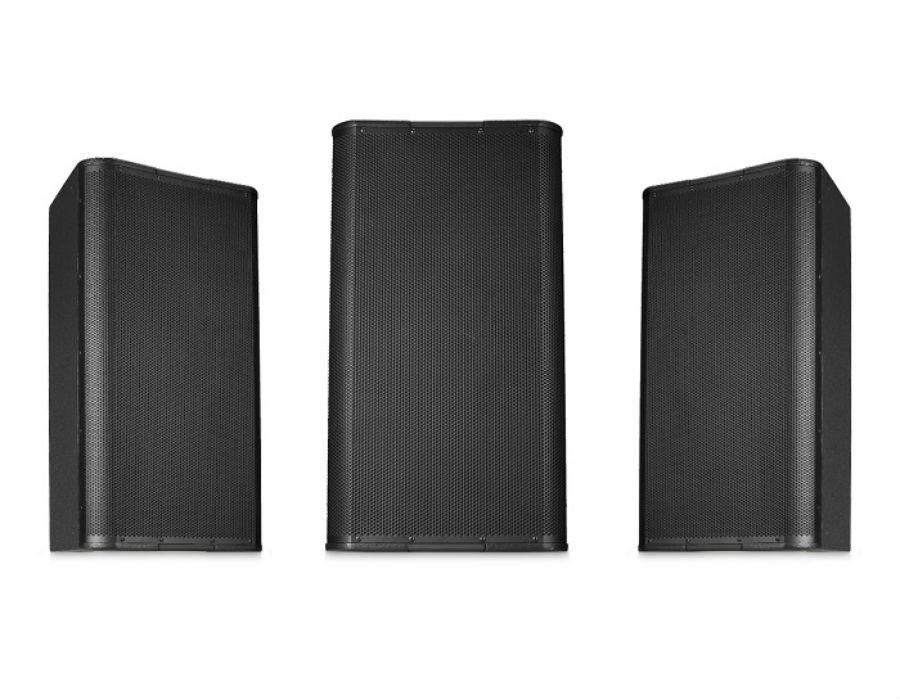

QSC AP-5152 High-Power, 15-inch 2-way, 75˚ conical DMT™

Directivity Matched Transition^® (DMT) ensures smooth, coherent power response across the listening plane
3” diaphragm compression delivers a clean and powerful high frequency response
M10 fittings offer flexible deployment options for a variety of applications
Clean industrial design with unadorned grilles complement most decors and settings

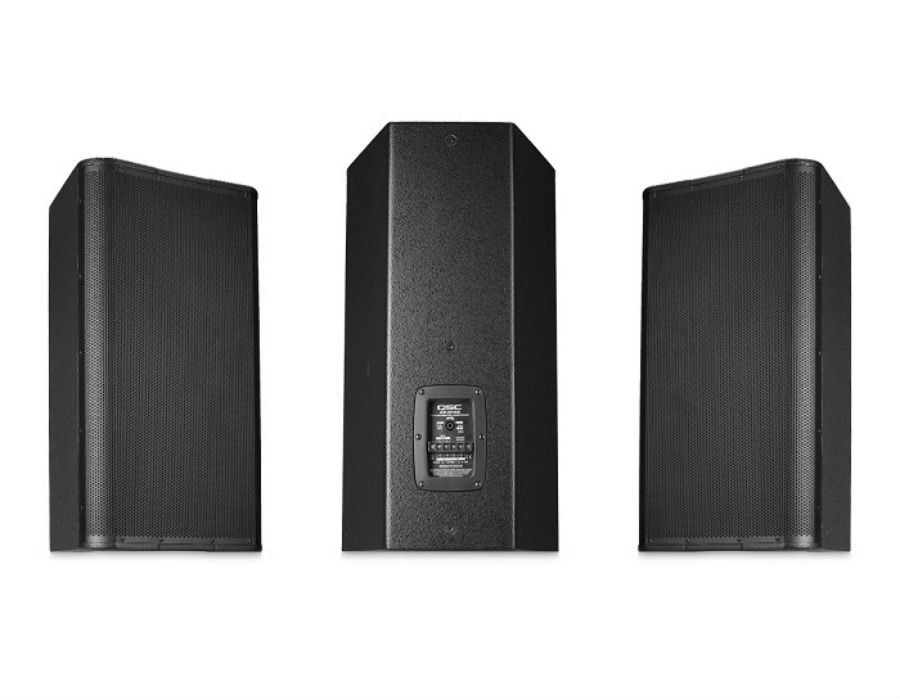

NL4 Speakon connector and covered barrier strip terminals
Bi-amp / passive switchable
Constructed from 15-ply Baltic birch plywood
16-gauge powder coated steel grilles
Available in black (RAL 9011) and white (RAL 9010)
Complete EASE, CAD & BIM information available online
Can also be used as a high-power cinema surround

SPECIFICATIONS	AP-5152
Frequency response (-10 dB)	44 Hz – 18 kHz
Rated noise power / voltage¹	625 watts / 65 volts rms
Broadband sensitivity²	96 dB SPL
Coverage angle	75˚ conical DMT™
Directivity factor (Q)	8.3
Directivity index (DI)	9.2
Recommended crossover	950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive)	123 dB continuous³ 129 dB peak⁴
Rated impedance	8Ω
HF transducer	76 mm (3-inch) voice coil, compression driver; 72 W / 24 V (2 hours)
LF transducer	381 mm (15-inch) driver with 102 mm (4-inch) voice coil; 525 W / 65 V (2 hours)
Optional accessories	M10 Kit-W
Enclosure details
Input connector	Covered barrier strip, NL4 connector
Enclosure material	15-ply Baltic birch plywood
Attachment points	Fifteen M10 threaded inserts
Color	Black (RAL 9011), White (RAL 9010)
Grille	16-gauge powder coated steel
Dimensions (HWD) inches	32 × 17.5 × 15.2
Dimensions (HWD) mm	813 x 445 x 386
Net weight	36.2 kg (80 lb)

Color	Black, White
