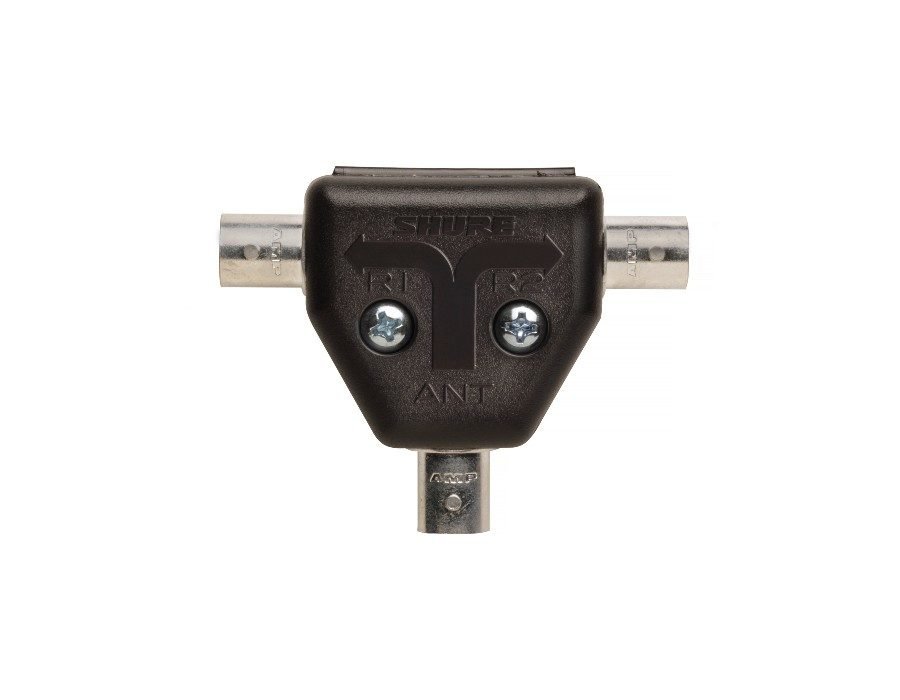

The Shure UA221 Antenna Splitter/Combiner Kit includes two adapters that can be used as one-input, two-output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, QLXD4, U4S, U4D, UR4S, UR4D, ULXD4, ULXD4D, and ULXD4Q.
The UA221 Kit lets you split an incoming signal into two outgoing signals or combine two incoming signals into one signal. Each kit includes two UA221 Splitter/Combiners, four coaxial cables, and attaching hardware.
The UA221 Splitter/Combiners are designed for use with Shure Model UA8 1/2 wave omnidirectional receiver antenna, UA400 1/4 wave UHF antennas, UA820 1/2 wave antennas (discontinued), and UA802/UA825/UA850/UA8100 50 ohm low loss antenna cable.
The Shure UA221 is a passive antenna splitter / combiner for the UC4, SLX4, ULXS4, ULXP4, U4S and U4D receivers. The unit will combine incoming signals from 2 antennas, or split a single incoming signal to feed 2 separate antenna inputs.
