Shure UA845UWB

$22,419.00

SISTEMA DE DISTRIBUCIÓN DE ANTENA

PRESENTACIÓN:PIEZA

Categoría: Etiqueta:


Descripción

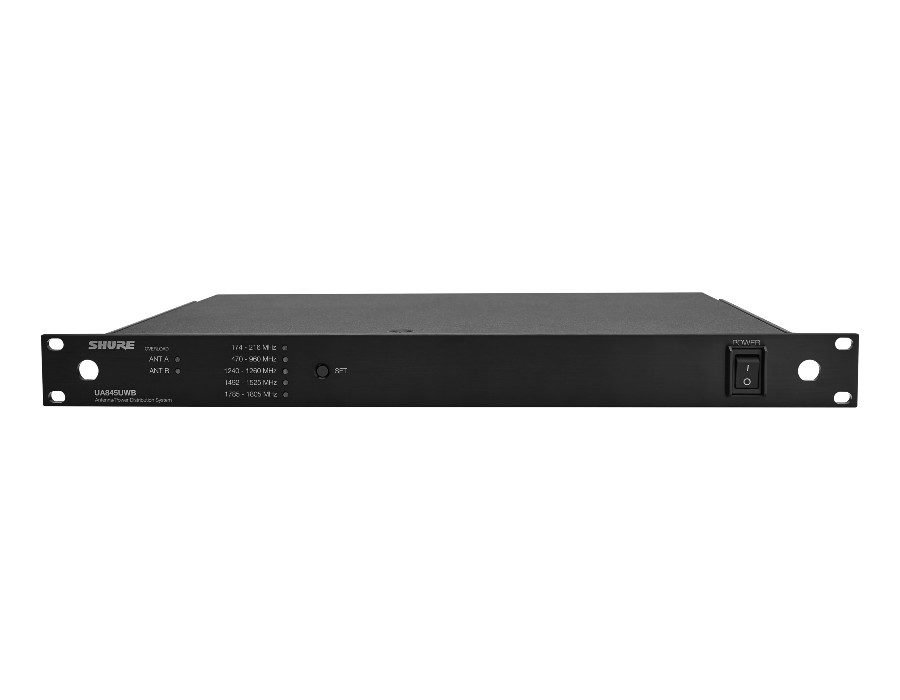

Shure UA845UWB

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

The UA845UWB Ultra-Wide Band Antenna and Power Distribution System from Shure is a five-way active antenna splitter and power distribution system for Shure’s wireless UHF-R, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers. It allows four wireless receivers to use the same set of antennas, and cascade connectors allow connections to a fifth receiver or a second UA845UWB.

Featuring power connectors for distributing power to each receiver, the antenna system’s RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of the five frequency bands from 174 to 1805 MHz. In addition, the unit comes complete with DC cables, bulkhead adapters, twelve BNC cables, a power cable, and a rackmount hardware kit.

5-selectable frequency ranges
Antenna A and B input overload LED indicators
Five-way RF signal output
Supports UHF-R, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers
Front-mounting antenna hardware
Rack-mounting hardware
Internal power supply
Four DC power feeds for receivers (15V, 2.5A max)
DC outputs for antenna bias (12V, 300mA max)

UA845UWB Band Selection on the Front Panel

  • 174 – 216 MHz
  • 470 – 960 MHz
  • 1240 – 1260 MHz
  • 1492 – 1525 MHz
  • 1785 – 1805 MHz
  • 5 selectable frequency ranges
  • Antenna A and B input overload LED indicators
  • Five-way RF signal output
  • Support Axient Digital, QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
